ST1+2+3 (BDM, BDG) - plugable

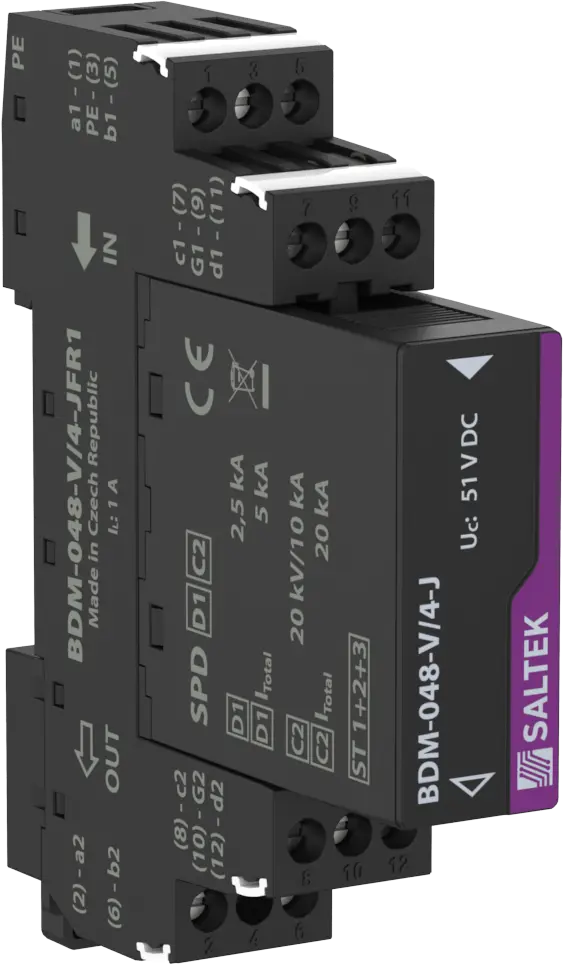

BDM-048-V/2-JFR1
Order number: A06429
pluggable module, coupling impedance (R – resistance), line separated from protective earth via GDT
- lightning current arrester with coarse and fine surge protection for two 1-core signalling lines
- installation at the boundary of LPZ 0 and LPZ 1 zones or higher, at the line entry into building and also installation close to protected device
- for protection of communication interfaces of I&C, MaR systems, electronic security and fire detection systems, etc. (mainly for RS-485 interfaces) against impact of surge voltage
- coarse and fine surge protection (core – GND) in differential mode and coarse surge protection in common mode (line – PE)
Technical parameters
| Parameter name | Parameter value | |
|---|---|---|
| Type of SPD | D1,C2 | |
| Location of SPD | ST 1+2+3 | |
| Mounting | DIN rail 35 mm | |
| Nominal voltage | Un | 48 V DC |
| Maximum operating voltage | Uc | 36.00 V AC |
| Maximum operating voltage | Uc | 51.00 V DC |
| Nominal load current | IL | 1.000 A |
| Treshold frequency core-core | f | 5.00 MHz |
| Serial resistance per core | R | 0.80 Ω |
| D1 impulse discharge current (10/350 µs) per core | Iimp | 2.50 kA |
| D1 total discharge current (10/350 µs) cores-PE | ITotal | 5.00 kA |
| C2 nominal discharge current (8/20 µs) GND-PE | In | 10.00 kA |
| C2 nominal discharge current (8/20 µs) per core | In | 10.00 kA |
| C2 total discharge current (8/20 µs) cores-PE | ITotal | 20.00 kA |
| C3 nominal discharge current (10/1000 µs) core-PE | ISM | 10 A |
| C3 nominal discharge current (10/1000 µs) core-core | ISM | 10 A |
| C3 voltage protection level mode GND-PE at 1 kV/µs | Up | 550.00 V |
| C3 voltage protection level mode core-GND at 1 kV/µs | Up | 65.00 V |
| Response time core-GND | ta | 1 ns |
| Response time GND-PE | ta | 100 ns |
| Connection (input - output) | terminals-terminals | |
| Cross-section of connected conductors solid (min) | 0.14 mm2 | |
| Cross-section of connected conductors solid (max) | 4.00 mm2 | |
| Cross-section of connected conductors stranded (min) | 0.14 mm2 | |
| Cross-section of connected conductors stranded (max) | 2.50 mm2 | |
| Degree of protection | IP 20 | |
| Range of ambient temperatures (min/max) | -40 / 70 °C | |
| According to standard | EN 61643-21+A1,A2:2013, IEC 61643-21+A1,A2:2012 | |
| ETIM Class | EC001625 | |
| Plug module | BDM-048-V/2-J-0 | |
| Customs tariff number | 85363010 | |
| EAN | 8595090564294 |
Files for download
-
Product dimensions
-

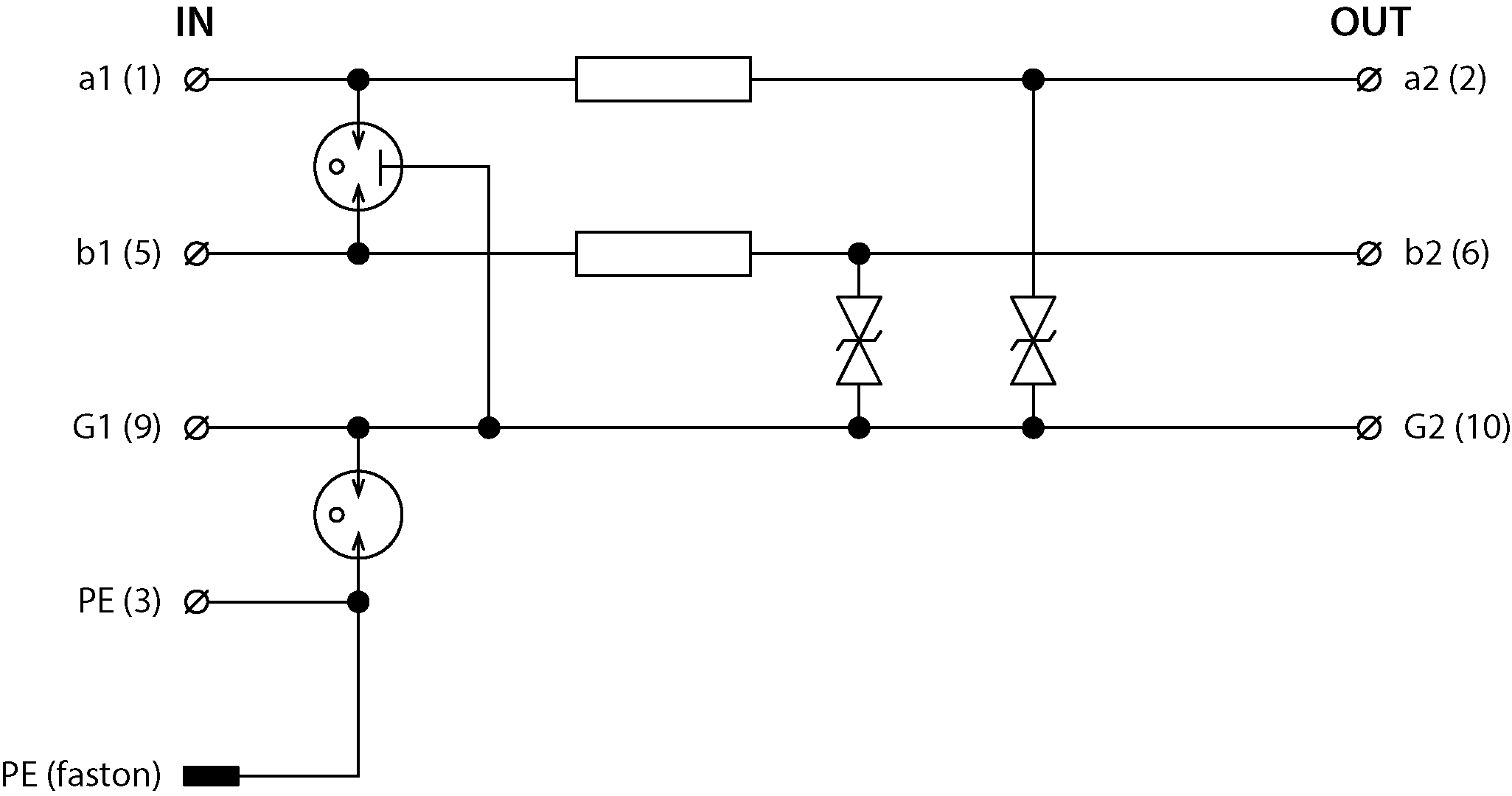

Basic circuit diagram
