Combination type - T1+T2 (25 kA)

FLP-B+C-MAXI-VSF/3+1

Order number: A07118

pluggable module, visual fault signalling, module locking, remote fault signalling

  • combination of three-pole high performance lightning current arrester and encapsulated efficiency spark gap, connected in the 3+1 mode
  • installation at the boundary of zones LPZ 0 and LPZ 1 or higher, mainly to main distribution boards
  • for protection against impact of direct or indirect lightning strikes in wide range of applications – office or industrial buildings
  • no follow current, zero leakage current
  • with integrated backup fuse

Technical parameters

Parameter name Parameter value
Type of SPD T1,T2
Mounting DIN rail 35 mm
Nominal voltage Un 230 V AC
Maximum operating voltage L-N Uc 260.00 V AC
Maximum operating voltage N-PE Uc 255.00 V AC
Type of network TT|TN-S
Maximum overcurrent protection -
Short-circuit current rating ISCCR 50.0 kA
Lightning impulse current (10/350 µs) L-N Iimp 25.00 kA
Lightning impulse current (10/350 µs) N-PE Iimp 100.00 kA
Nominal discharge current (8/20 µs) L-N In 30.00 kA
Nominal discharge current (8/20 µs) N-PE In 100.00 kA
Maximum discharge current (8/20 µs) L-N Imax 60.00 kA
Maximum discharge current (8/20 µs) N-PE Imax 100.00 kA
Voltage protection level mode L-N Up 1.50 kV
Voltage protection level mode L-PE Up 2.20 kV
Voltage protection level mode N-PE Up 1.50 kV
Ability to independently switch off the following current N-PE Ifi 0.1 kA
Response time L-N ta 100 ns
Response time N-PE ta 100 ns
TOV 5 s L-N 335 V
TOV characteristic (TOV 5 s) withstand
TOV 120 min L-N 440 V
TOV characteristic (120 min) withstand
TOV 200 ms N-PE 1 200 V
TOV characteristic (TOV 200 ms) withstand
Cross-section of connected conductors solid (min) 2.50 mm2
Cross-section of connected conductors solid (max) 50.00 mm2
Cross-section of connected conductors stranded (min) 2.50 mm2
Cross-section of connected conductors stranded (max) 35.00 mm2
Cross-section of remote indication conductors solid (max) 1.5 mm2
Cross-section of remote indication conductors stranded (max) 1.5 mm2
Fault indication L-N red indication field
Fault indication N-PE no
Remote indication potential-free change-over contact
Remote indication contacts 250V/0,5A AC,250V/0,1A DC
Degree of protection IP 20
Range of ambient temperatures (min/max) -40 / 80 °C
Humidity 5 - 95 %
According to standard EN 61643-11:2012, IEC 61643-11:2011
ETIM Class EC001457
Plug module FLP-B+C MAXI V/0|FLP-A100N V/0
Customs tariff number 85363090
EAN 8595090571186

Files for download

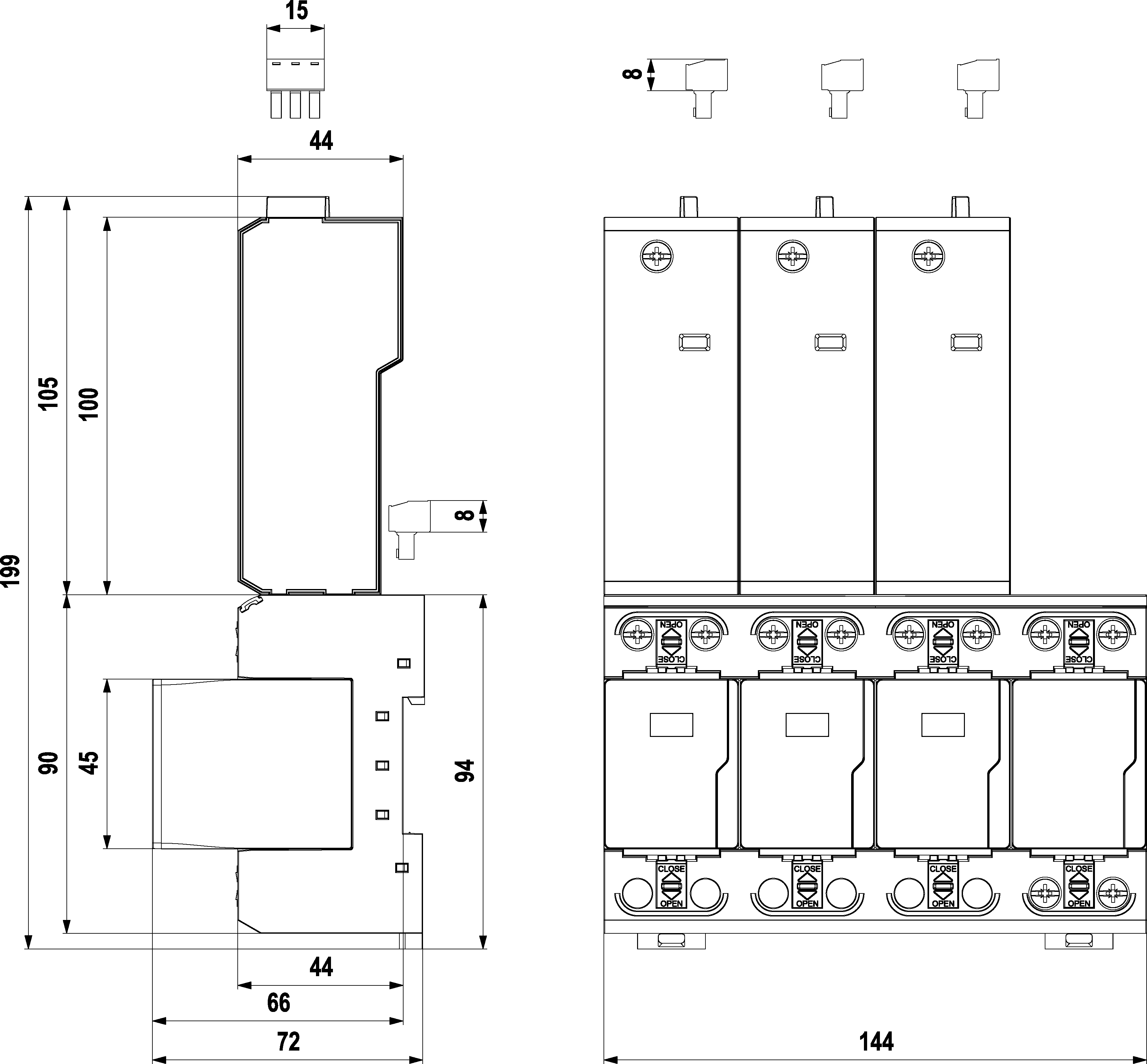

  • Product dimensions

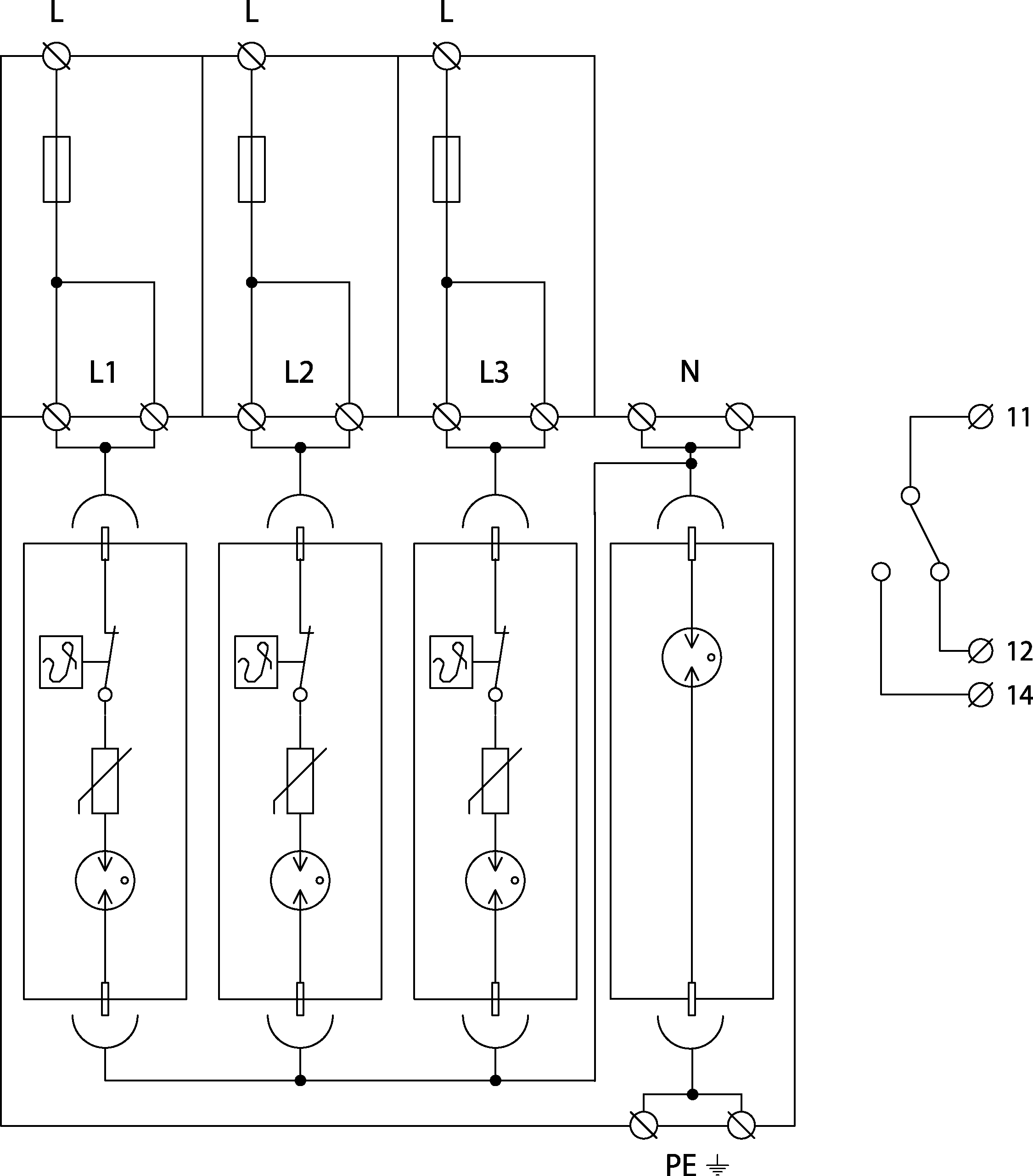

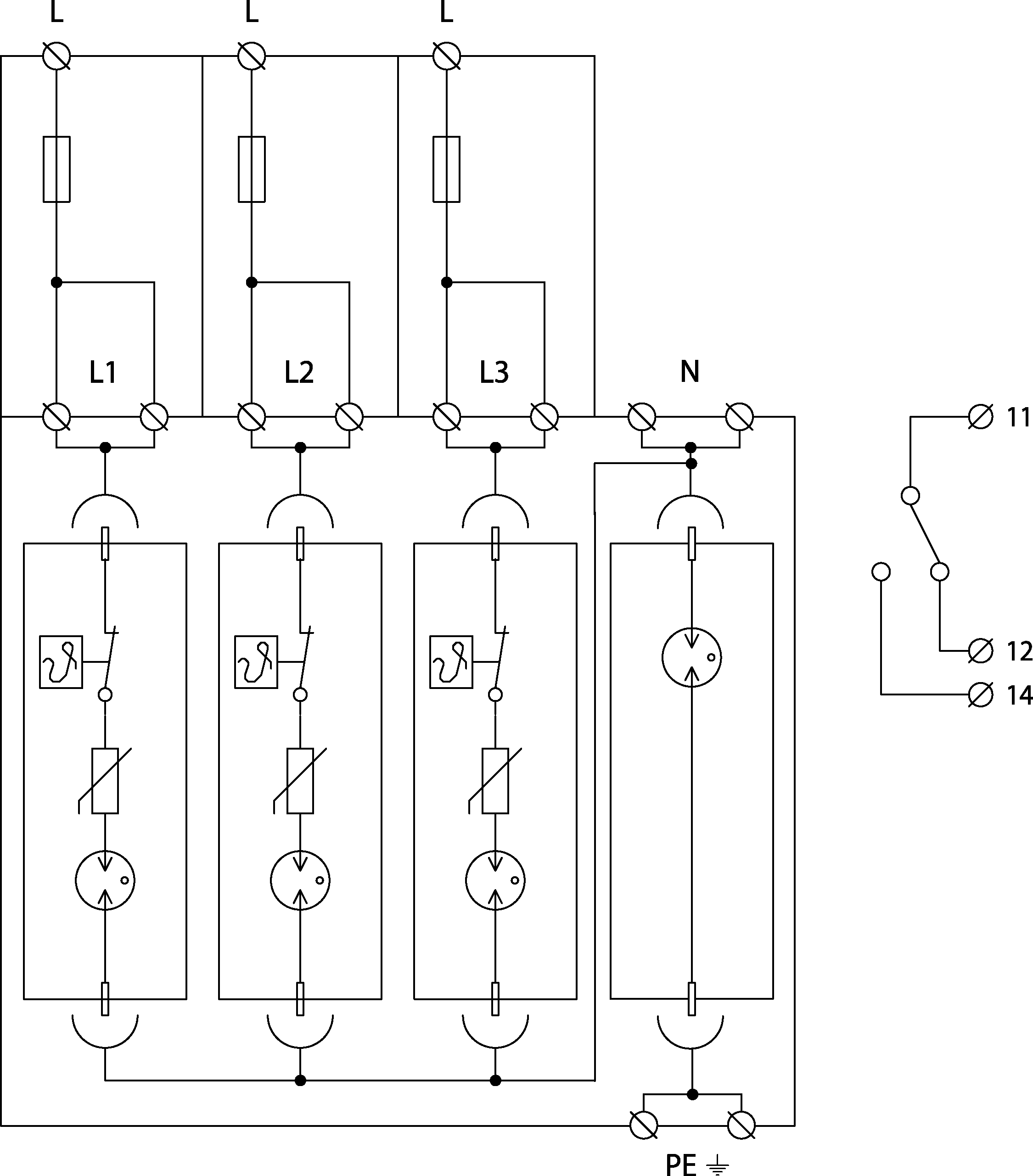

  • Basic circuit diagram
