40 mm busbar system - T1+T2 (12,5 kA)
FLP-ZP-12,5-VBH/3+1
Order number: A06627
pluggable module, visual fault signalling, module locking, onto 40 mm busbar system
- high performance lightning current arrester, installation at the boundary of zones LPZ 0 and LPZ 1 or higher, mainly to main distribution boards upstream power meters
- for protection against impact of direct or indirect lightning strikes in wide range of applications – houses, office or industrial buildings, resp. to sub- distribution boards in large buildings, for application in Germany
Technical parameters
| Parameter name | Parameter value | |
|---|---|---|
| Type of SPD | T1,T2,T3 | |
| Mounting | 40 mm busbar system | |
| Nominal voltage | Un | 230 V AC |
| Maximum operating voltage L-N | Uc | 255.00 V AC |
| Maximum operating voltage N-PE | Uc | 255.00 V AC |
| Type of network | TT|TN-S | |
| Maximum overcurrent protection | 160 A gL/gG | |
| Short-circuit current rating | ISCCR | 25.0 kA |
| Total discharge current (10/350 µs) | ITotal(10/350) | 50.00 kA |
| Lightning impulse current (10/350 µs) L-N | Iimp | 12.50 kA |
| Lightning impulse current (10/350 µs) N-PE | Iimp | 50.00 kA |
| Nominal discharge current (8/20 µs) L-N | In | 20.00 kA |
| Nominal discharge current (8/20 µs) N-PE | In | 50.00 kA |
| Test voltage | Uoc | 10.0 kV |
| Total discharge current (8/20 µs) | ITotal(8/20) | 100.00 kA |
| Maximum discharge current (8/20 µs) L-N | Imax | 60.00 kA |
| Maximum discharge current (8/20 µs) N-PE | Imax | 100.00 kA |
| Voltage protection level mode L-N | Up | 1.50 kV |
| Voltage protection level mode L-PE | Up | 1.50 kV |
| Voltage protection level mode N-PE | Up | 1.50 kV |
| Response time L-N | ta | 100 ns |
| Response time N-PE | ta | 100 ns |
| TOV 5 s L-N | 335 V | |
| TOV 5 s L-PE | 440 V | |
| TOV characteristic (TOV 5 s) | withstand | |
| TOV 120 min L-N | 440 V | |
| TOV 120 min L-PE | 335 V | |
| TOV characteristic (120 min) | withstand | |
| TOV 200 ms N-PE | 1 200 V | |
| TOV characteristic (TOV 200 ms) | withstand | |
| Cross-section of connected conductors solid (min) | 1.00 mm2 | |
| Cross-section of connected conductors solid (max) | 35.00 mm2 | |
| Cross-section of connected conductors stranded (min) | 1.00 mm2 | |
| Cross-section of connected conductors stranded (max) | 25.00 mm2 | |
| Fault indication | red indication field | |
| Degree of protection | IP 20 | |
| Range of ambient temperatures (min/max) | -40 / 80 °C | |
| Humidity | 5 - 95 % | |
| According to standard | EN 61643-11:2012, IEC 61643-11:2011 | |
| ETIM Class | EC000381 | |
| Plug module | FLP-ZP-12,5-VBH/0 | |
| Customs tariff number | 85363090 | |
| EAN | 8595090566274 |
Files for download
-

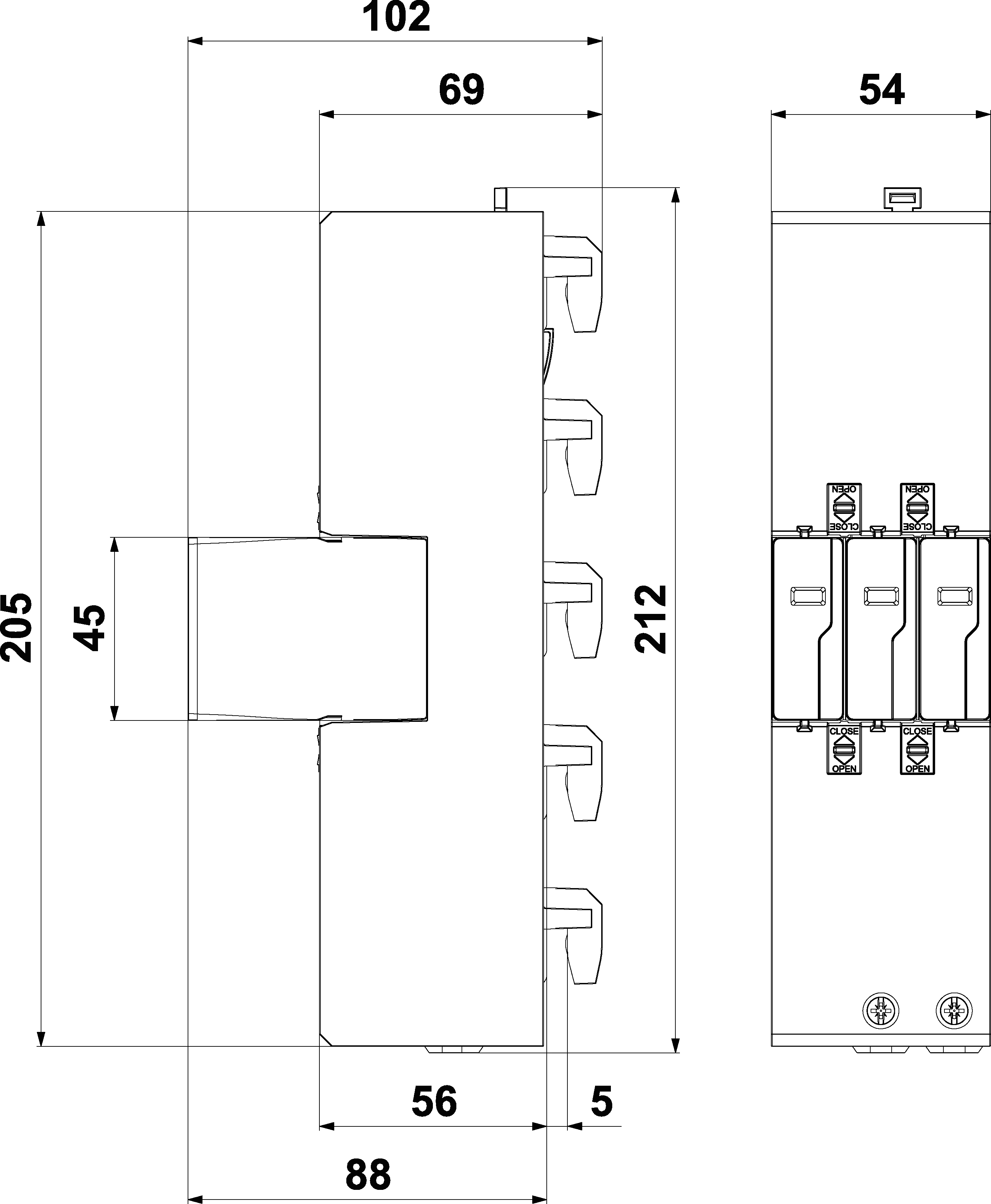

Product dimensions
-

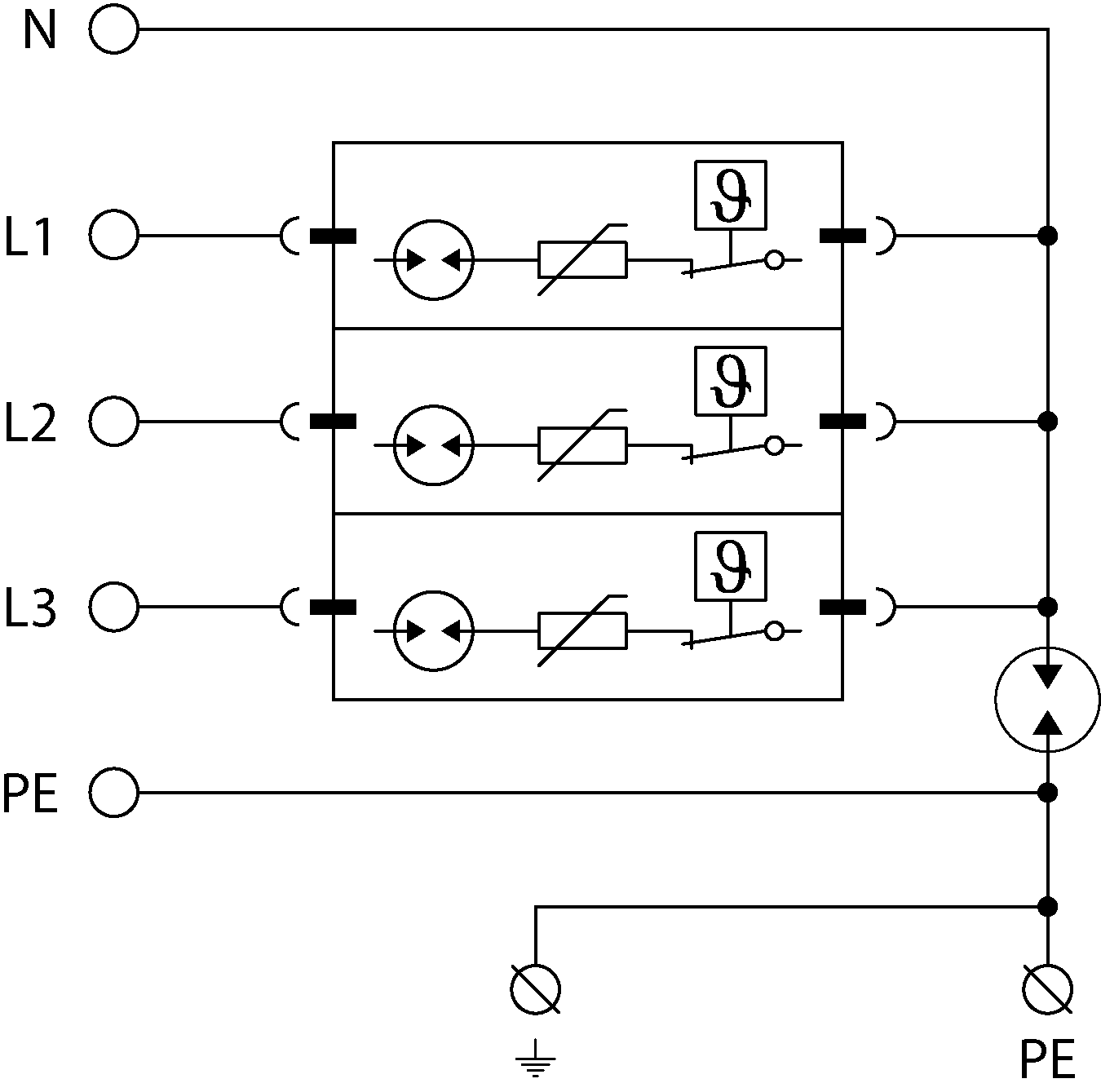

Basic circuit diagram
