40 mm busbar system - T1+T2 (12,5 kA)
FLP-ZP2-12,5-VBH/3S
Order number: A07031
pluggable module, visual fault signalling, module locking, terminals for supply, onto 40 mm busbar system, remote fault signalling
- high performance lightning current arrester, installation at the boundary of zones LPZ 0 and LPZ 1 or higher, mainly to main distribution boards upstream power meters
- for protection against impact of direct or indirect lightning strikes in wide range of applications – houses, office or industrial buildings, resp. to sub-distribution boards in large buildings
- protected supply of power meters assambly
Technical parameters
| Parameter name | Parameter value | |
|---|---|---|
| Type of SPD | T1,T2,T3 | |
| Mounting | 40 mm busbar system | |
| Nominal voltage | Un | 230 V AC |
| Maximum operating voltage | Uc | 255.00 V AC |
| Nominal load current - auxiliary output terminals L, N | 6.3 A | |
| Type of network | TN-C | |
| Maximum overcurrent protection | 160 A gL/gG | |
| Short-circuit current rating | ISCCR | 25.0 kA |
| Total discharge current (10/350 µs) | ITotal(10/350) | 37.50 kA |
| Lightning impulse current (10/350 µs) | Iimp | 12.50 kA |
| Nominal discharge current (8/20 µs) | In | 20.00 kA |
| Test voltage | Uoc | 10.0 kV |
| Total discharge current (8/20 µs) | ITotal(8/20) | 100.00 kA |
| Maximum discharge current (8/20 µs) | Imax | 60.00 kA |
| Voltage protection level | Up | 1.50 kV |
| Response time | ta | 100 ns |
| TOV 5 s L-N | 335 V | |
| TOV characteristic (TOV 5 s) | withstand | |
| TOV 120 min L-N | 440 V | |
| TOV characteristic (120 min) | withstand | |
| Cross-section of connected conductors solid (min) | 1.00 mm2 | |
| Cross-section of connected conductors solid (max) | 16.00 mm2 | |
| Cross-section of connected conductors stranded (min) | 1.00 mm2 | |
| Cross-section of connected conductors stranded (max) | 16.00 mm2 | |
| Cross-section of connected conductors solid (max) - aux. out terminals L, N | 4.00 mm2 | |
| Cross-section of connected conductors stranded (max) - aux. out terminals L, N | 2.50 mm2 | |
| Cross-section of remote indication conductors solid (max) | 1.5 mm2 | |
| Cross-section of remote indication conductors stranded (max) | 1.5 mm2 | |
| Fault indication | red indication field | |
| Remote indication | potential-free change-over contact | |
| Remote indication contacts | 250V/0,5A AC,250V/0,1A DC | |
| Degree of protection | IP 20 | |
| Range of ambient temperatures (min/max) | -40 / 80 °C | |
| Humidity | 5 - 95 % | |
| According to standard | EN 61643-11:2012, IEC 61643-11:2011 | |
| ETIM Class | EC000381 | |
| Plug module | FLP-ZP-12,5-VBH/0 | |
| Customs tariff number | 85363090 | |
| EAN | 8595090570318 |
Files for download
-

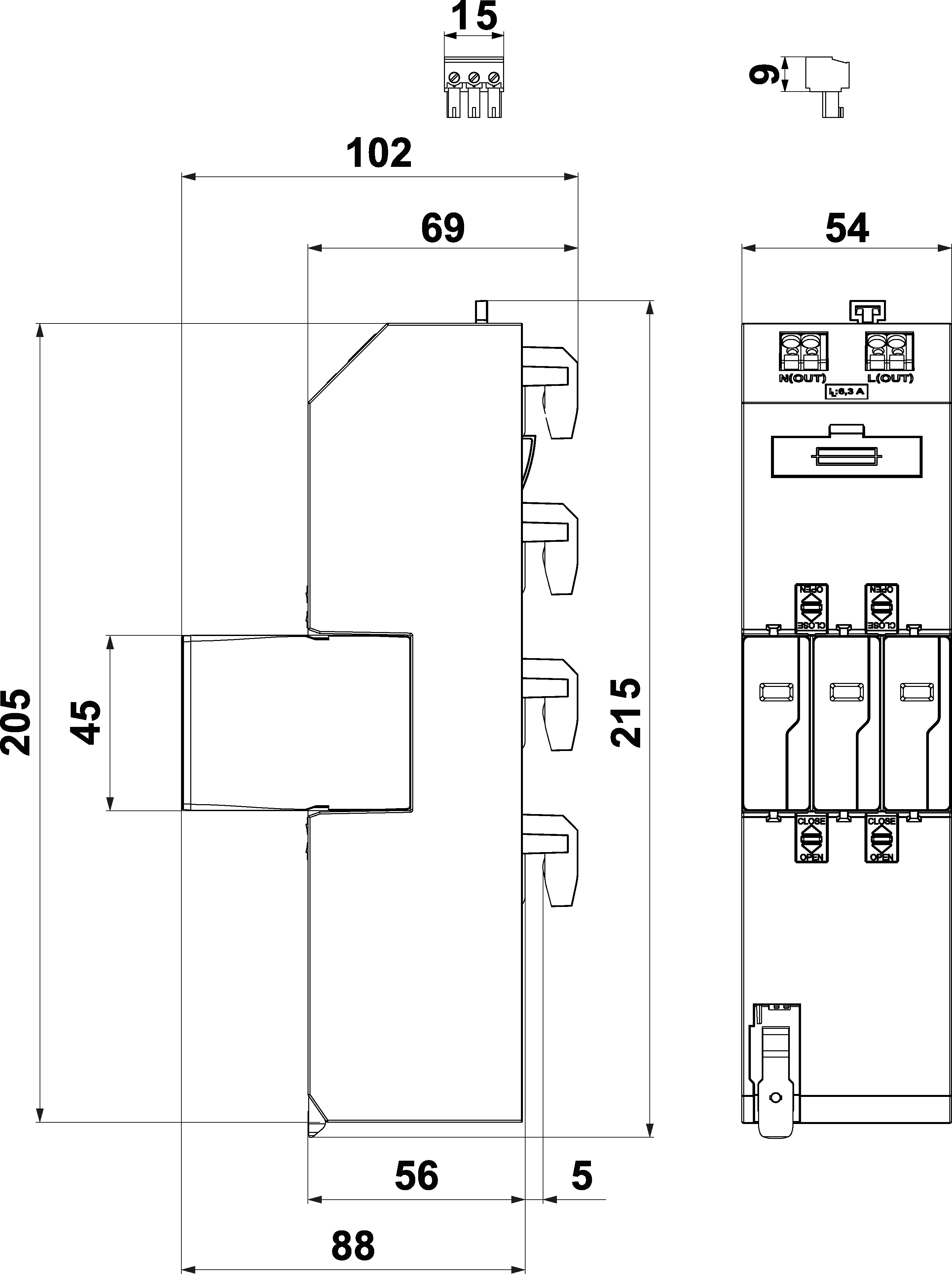

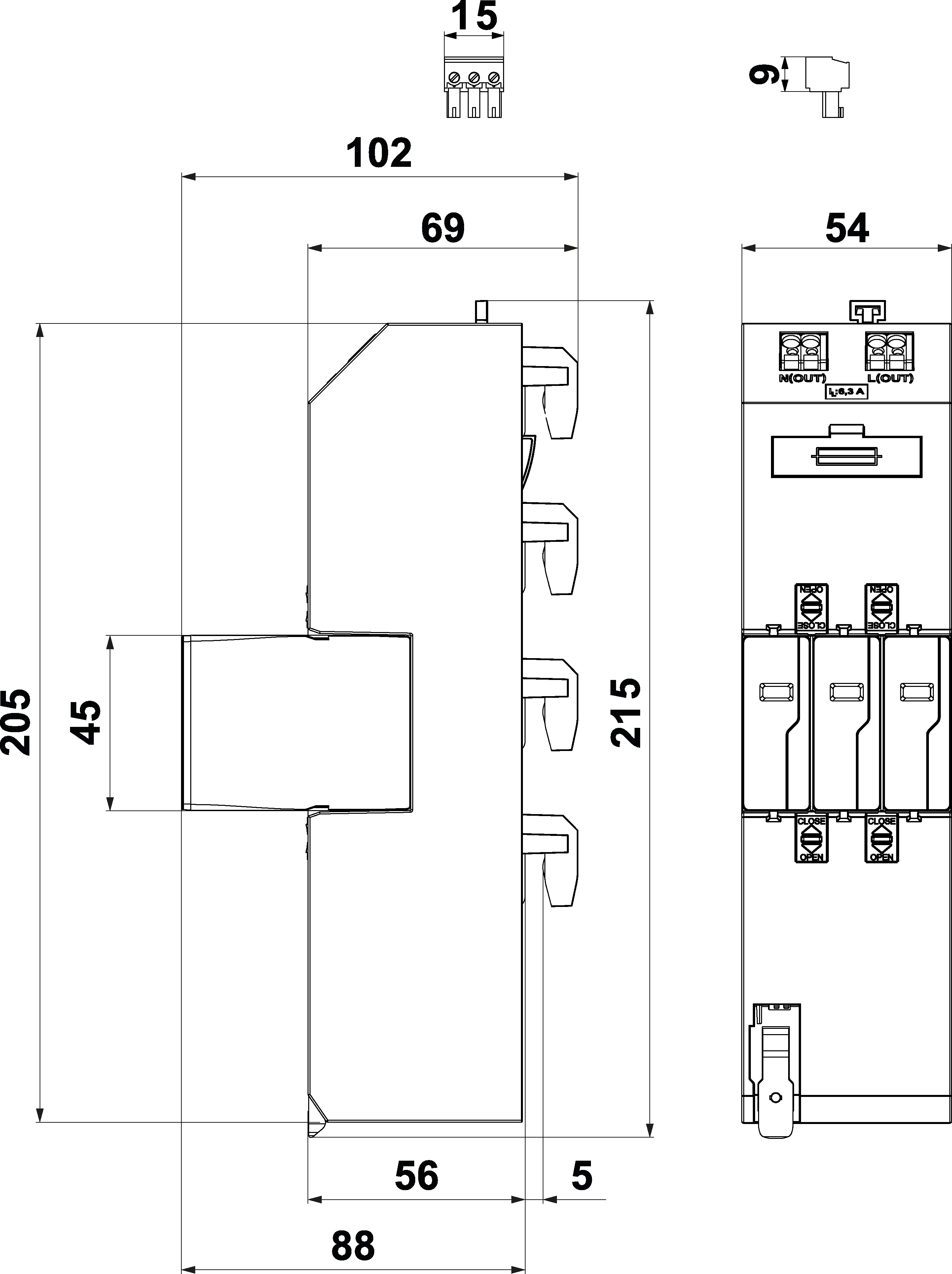

Product dimensions
-

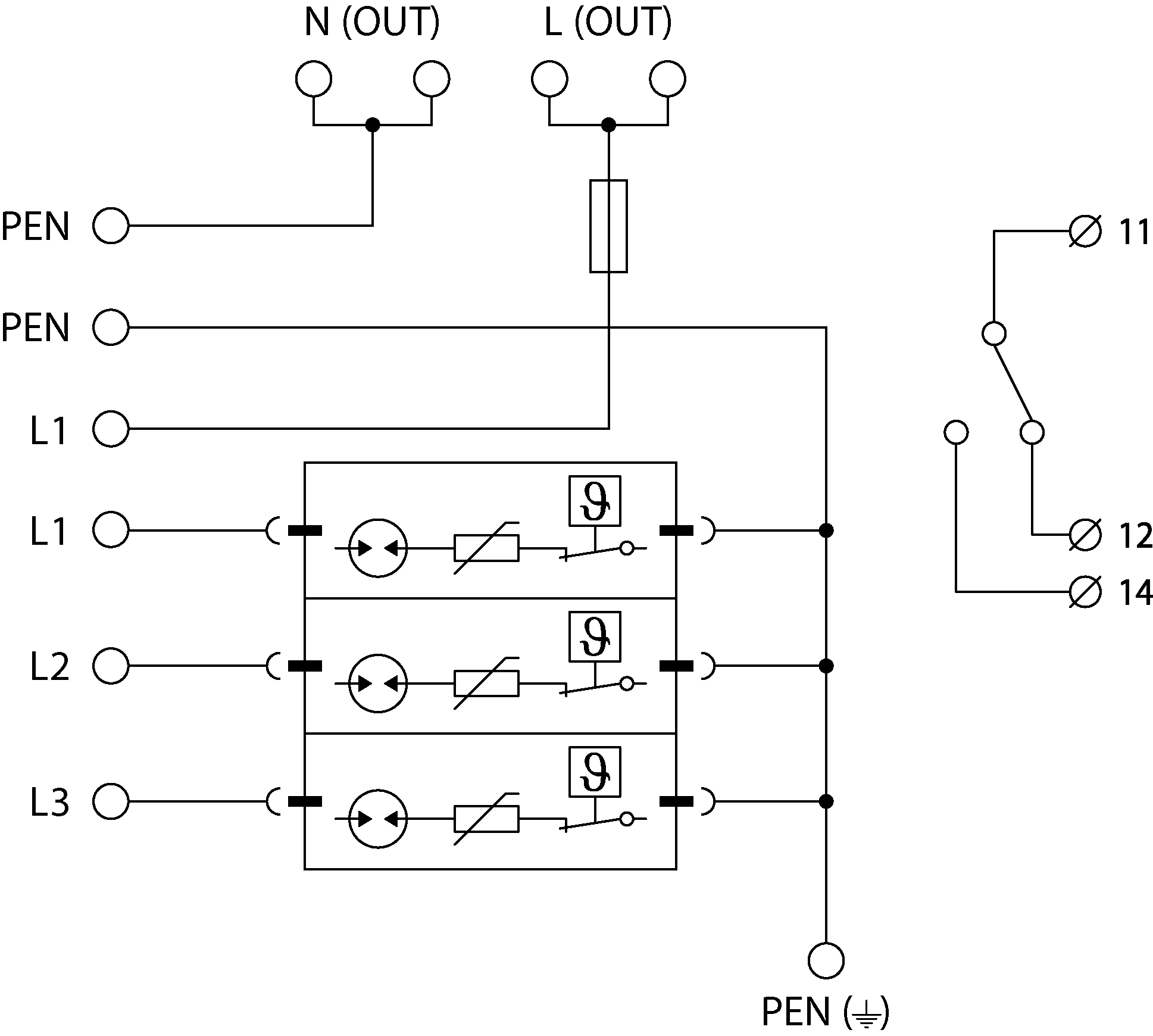

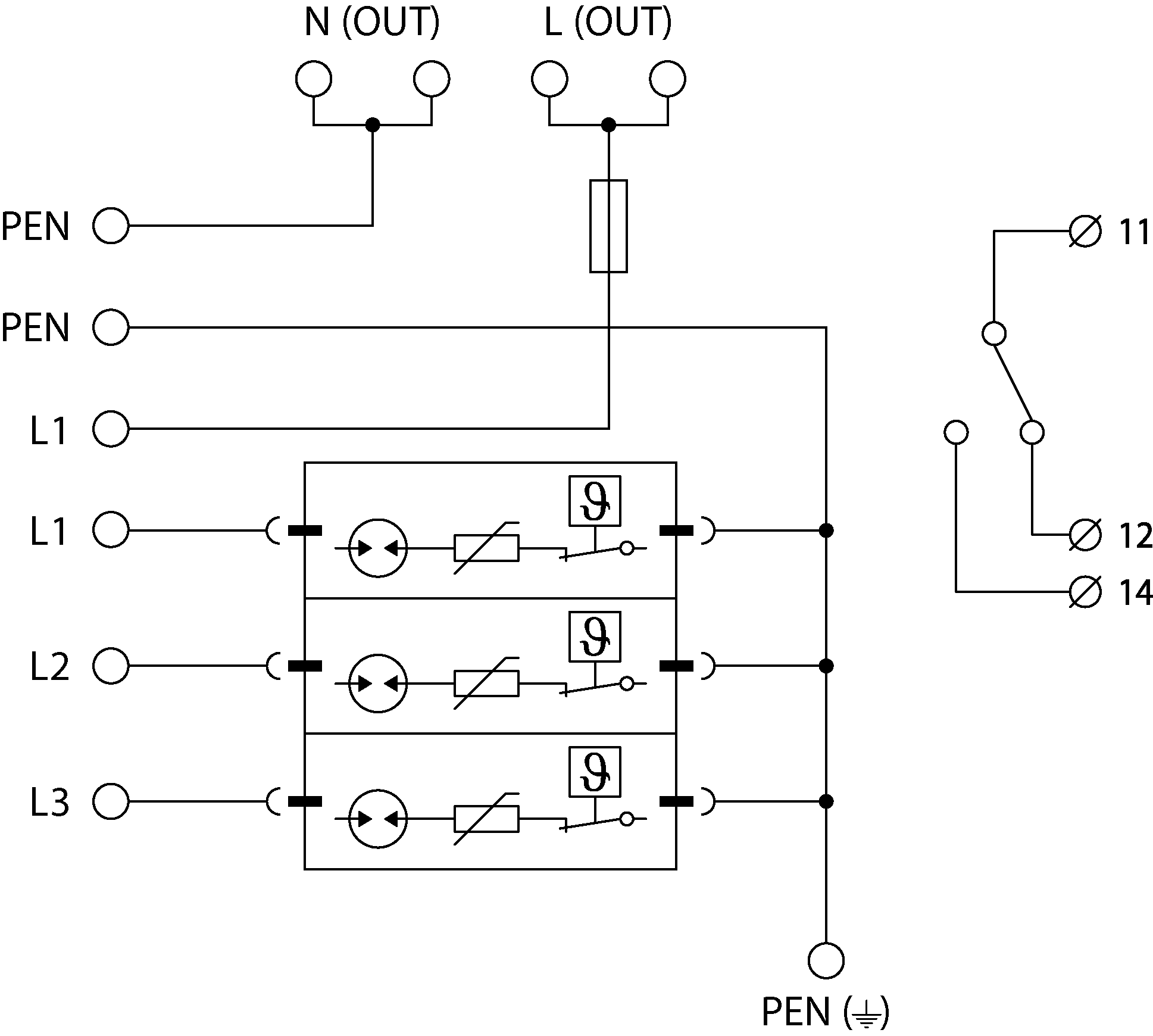

Basic circuit diagram
