For RACK 19“
RACK-PROTECTOR-VF5-1U
Order number: A05875
visual fault signalling, 3 m power supply cord, CEE 7/7 plug type, on/off switch, RFI filter
- multiple socket outlet with integrated surge protection SPD Type 3 and RFi filter
- for 19" RACK
- for protection of information technology equipments against surge voltage and RF disturbance
- mounting height 1U
- 5x socket outlet - French type
Technical parameters
| Parameter name | Parameter value | |
|---|---|---|
| Type of SPD | T3 | |
| Mounting | 19" rack | |
| VF filter | yes | |
| Nominal voltage | Un | 230 V AC |
| Maximum operating voltage | Uc | 275.00 V AC |
| Nominal load current | IL | 16.000 A |
| Type of network | TN | |
| Maximum overcurrent protection | 16 A gL/gG or C 16 A | |
| Short-circuit current rating | ISCCR | 6.0 kA |
| Residual current | IPE | 0.700 mA |
| Filter attenuation at 1MHz (50 Ω//50 Ω/) unsymmetrical | 30 dB | |
| Nominal discharge current (8/20 µs) L-N | In | 3.00 kA |
| Nominal discharge current (8/20 µs) L+N-PE | In | 5.00 kA |
| Nominal discharge current (8/20 µs) N-PE | In | 3.00 kA |
| Test voltage L-N | Uoc | 6.0 kV |
| Test voltage N-PE | Uoc | 6.0 kV |
| Test voltage L+N-PE | Uoc | 10.0 kV |
| Voltage protection level mode L-N | Up | 1.20 kV |
| Voltage protection level mode L-PE | Up | 1.50 kV |
| Voltage protection level mode N-PE | Up | 1.50 kV |
| Response time L-N | ta | 25 ns |
| Response time N-PE | ta | 100 ns |
| Fault indication | red indicator | |
| Degree of protection | IP 40 | |
| According to standard | EN 61643-11:2012, IEC 61643-11:2011 | |
| ETIM Class | EC000942 | |
| Customs tariff number | 85363010 | |
| EAN | 8595090558750 |
Files for download
-

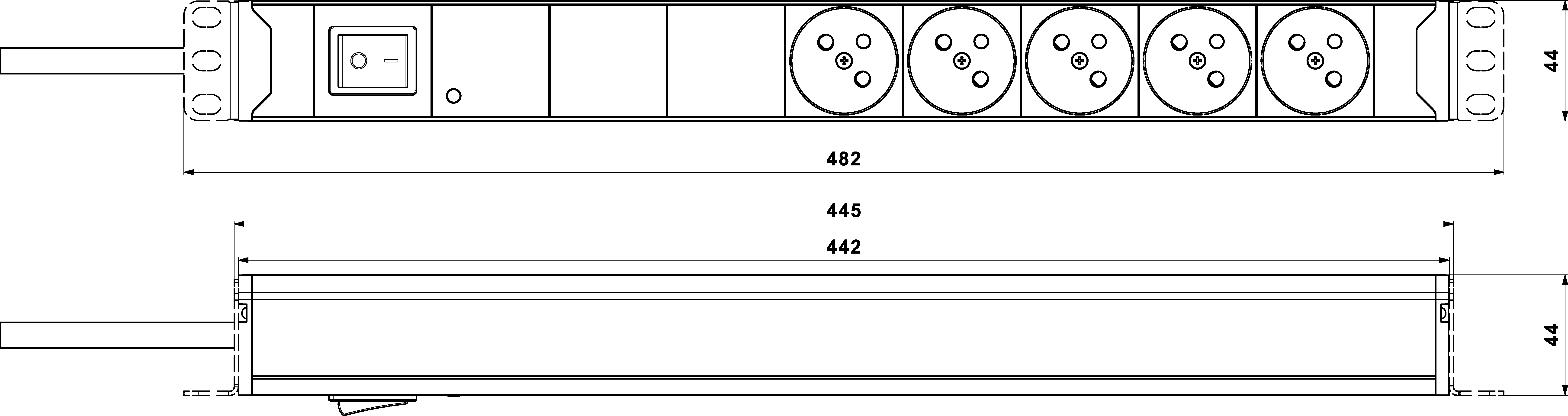

Product dimensions
-

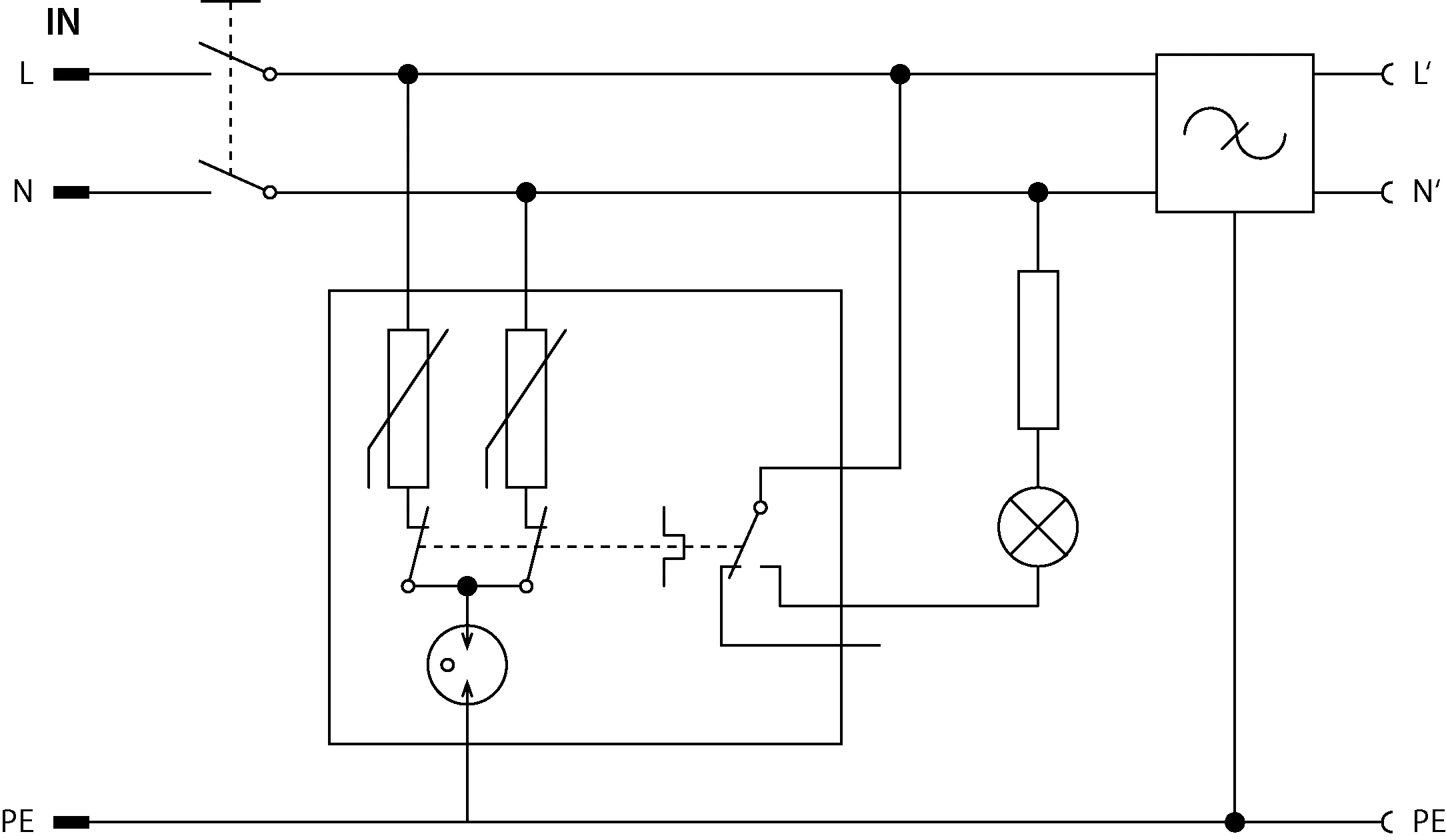

Basic circuit diagram
