Spare modules

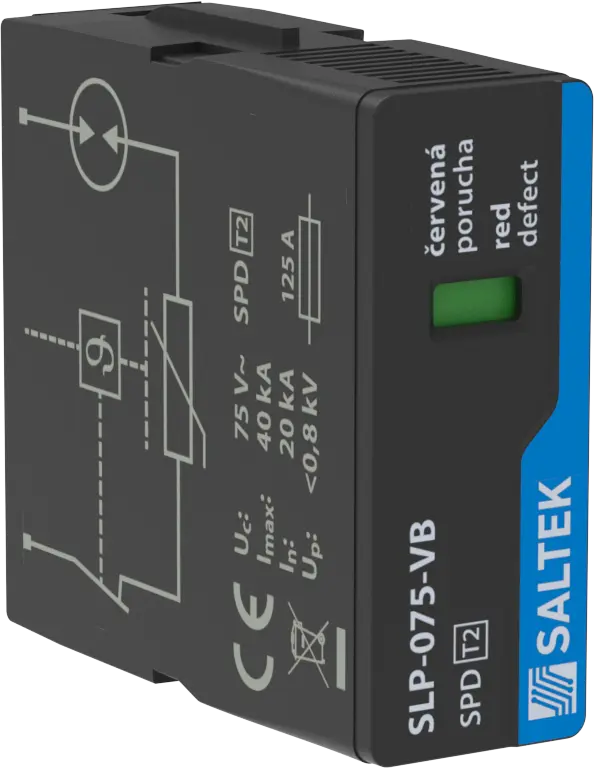

SLP-075-VB/0
Order number: A07063
- replacement module for SLP-075-VB/…
Technical parameters
| Parameter name | Parameter value | |
|---|---|---|
| Type of SPD | T2 | |
| Maximum operating voltage | Uc | 75.00 V AC |
| Short-circuit current rating | ISCCR | 50.0 kA |
| Nominal discharge current (8/20 µs) | In | 20.00 kA |
| Maximum discharge current (8/20 µs) | Imax | 40.00 kA |
| Voltage protection level | Up | 0.80 kV |
| Response time | ta | 100 ns |
| Fault indication | red indication field | |
| ETIM Class | EC000941 | |
| Customs tariff number | 85363030 | |
| EAN | 8595090570639 |
Files for download
-
Product dimensions
-

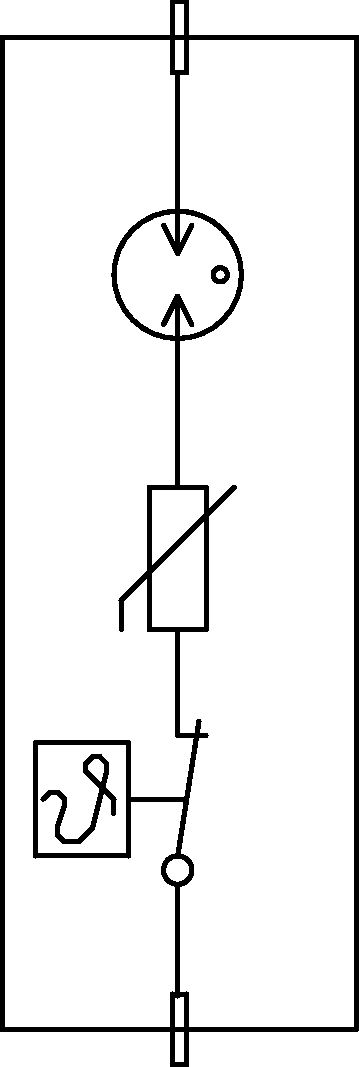

Basic circuit diagram
