Combination type
SLP-150-VB/1
Order number: A07053
pluggable module, visual fault signalling
- combined type surge arrester (serial combination varistor+GDT)
- installation to LV installations, especially to sub-distribution boards, suitable also for measuring circuits
- for protection of the installations and equipments against impact of induced overvoltages during a lightning strike in areas with higher storm activity or switching overvoltages or as the first stage of for protection for measuring circuits
- zero leakage current
Technical parameters
| Parameter name | Parameter value | |
|---|---|---|
| Type of SPD | T2 | |
| Mounting | DIN rail 35 mm | |
| Nominal voltage | Un | 100, 115, 120, 127 V AC |
| Maximum operating voltage | Uc | 150.00 V AC |
| Maximum operating voltage | Uc | 120.00 V DC |
| Type of network | TN|TT | |
| Maximum overcurrent protection | 125 A gL/gG | |
| Short-circuit current rating | ISCCR | 50.0 kA |
| Residual current | IPE | 0.002 mA |
| Nominal discharge current (8/20 µs) | In | 20.00 kA |
| Maximum discharge current (8/20 µs) | Imax | 40.00 kA |
| Voltage protection level | Up | 1.20 kV |
| Response time | ta | 100 ns |
| TOV 5 s L-N | 185 V | |
| TOV characteristic (TOV 5 s) | withstand | |
| TOV 120 min L-N | 242 V | |
| TOV characteristic (120 min) | withstand | |
| Cross-section of connected conductors solid (min) | 1.00 mm2 | |
| Cross-section of connected conductors solid (max) | 35.00 mm2 | |
| Cross-section of connected conductors stranded (min) | 1.00 mm2 | |
| Cross-section of connected conductors stranded (max) | 25.00 mm2 | |
| Fault indication | red indication field | |
| Remote indication | no | |
| Degree of protection | IP 20 | |
| Range of ambient temperatures (min/max) | -40 / 80 °C | |
| Humidity | 5 - 95 % | |
| According to standard | EN 61643-11:2012, IEC 61643-11:2011 | |
| ETIM Class | EC000941 | |
| Plug module | SLP-150-VB/0 | |
| Customs tariff number | 85363030 | |
| EAN | 8595090570530 |
Files for download
-

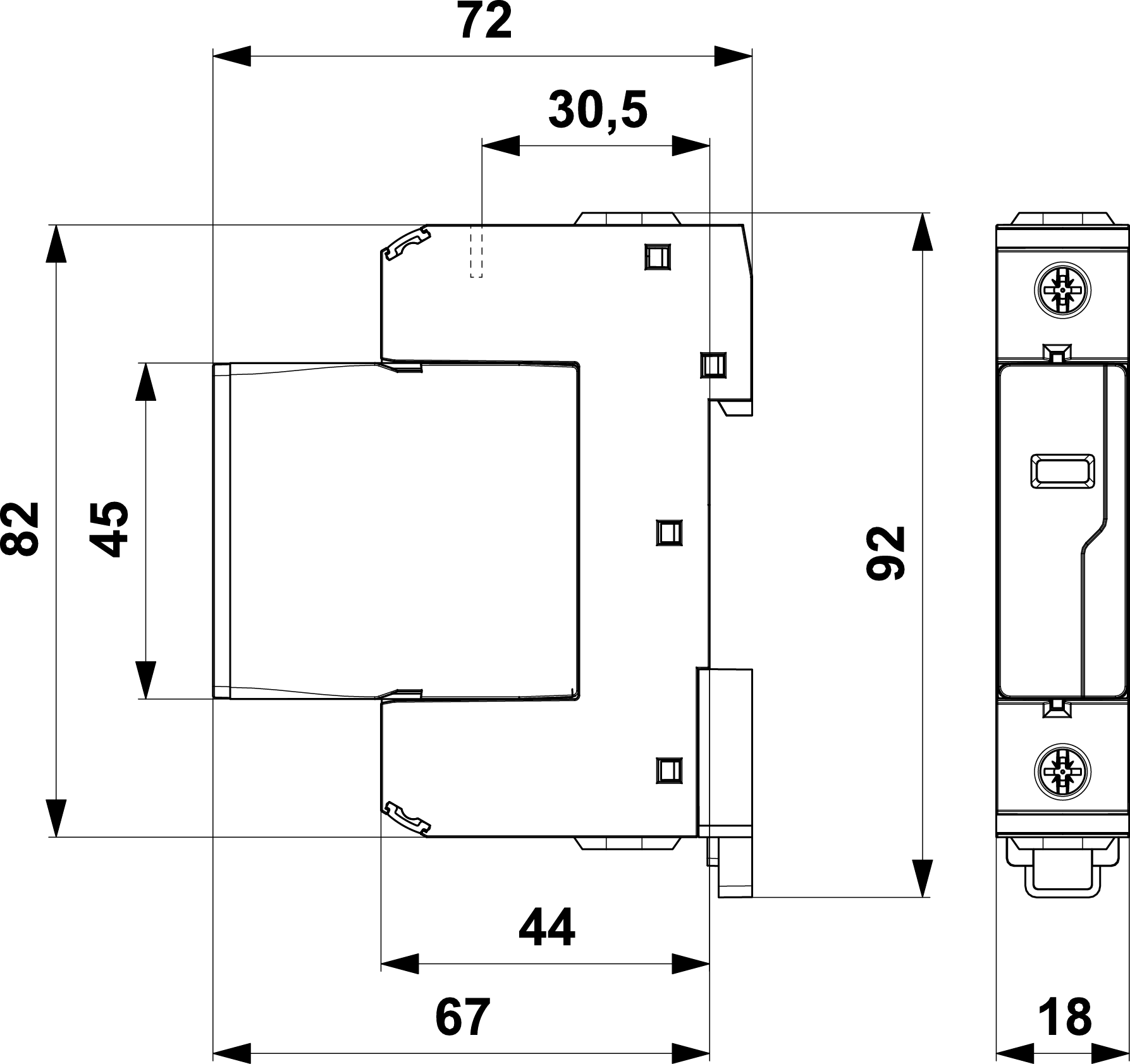

Product dimensions
-
