MOV
SLP-275 V/3+1
Order number: A01946
pluggable module, visual fault signalling, module locking
- combination of varistor surge arrester and encapsulated spark gap, connected in the 3+1 mode
- installation to LV installations, especially to sub-distribution boards in TT and also TN-S systems
- for protection of the installations and equipments against impact of induced overvoltages during a lightning strike or switching overvoltages
Technical parameters
| Parameter name | Parameter value | |
|---|---|---|
| Type of SPD | T2 | |
| Mounting | DIN rail 35 mm | |
| Nominal voltage | Un | 230 V AC |
| Maximum operating voltage L-N | Uc | 275.00 V AC |
| Maximum operating voltage N-PE | Uc | 255.00 V AC |
| Type of network | TT | |
| Maximum overcurrent protection | 160 A gL/gG | |
| Short-circuit current rating | ISCCR | 50.0 kA |
| Nominal discharge current (8/20 µs) L-N | In | 20.00 kA |
| Nominal discharge current (8/20 µs) N-PE | In | 20.00 kA |
| Maximum discharge current (8/20 µs) L-N | Imax | 40.00 kA |
| Maximum discharge current (8/20 µs) N-PE | Imax | 40.00 kA |
| Voltage protection level mode L-N | Up | 1.35 kV |
| Voltage protection level mode L-PE | Up | 1.50 kV |
| Voltage protection level mode N-PE | Up | 1.50 kV |
| Voltage protection level at 5 kA L-N | Up | 0.90 kV |
| Ability to independently switch off the following current N-PE | Ifi | 0.1 kA |
| Response time L-N | ta | 25 ns |
| Response time N-PE | ta | 100 ns |
| TOV 5 s L-N | 335 V | |
| TOV characteristic (TOV 5 s) | withstand | |
| TOV 120 min L-N | 440 V | |
| TOV characteristic (120 min) | safe failure | |
| TOV 200 ms L-PE | 1 455 V | |
| TOV 200 ms N-PE | 1 200 V | |
| TOV characteristic (TOV 200 ms) | withstand | |
| Cross-section of connected conductors solid (min) | 1.00 mm2 | |
| Cross-section of connected conductors solid (max) | 35.00 mm2 | |
| Cross-section of connected conductors stranded (min) | 1.00 mm2 | |
| Cross-section of connected conductors stranded (max) | 25.00 mm2 | |
| Fault indication L-N | red indication field | |
| Fault indication N-PE | no | |
| Degree of protection | IP 20 | |
| Range of ambient temperatures (min/max) | -40 / 80 °C | |
| Humidity | 5 - 95 % | |
| According to standard | EN 61643-11:2012, IEC 61643-11:2011 | |
| ETIM Class | EC000941 | |
| Plug module | SLP-275 V/0|SLP-NPE V/0 | |
| Customs tariff number | 85363030 | |
| EAN | 8595090519461 |
Files for download
-

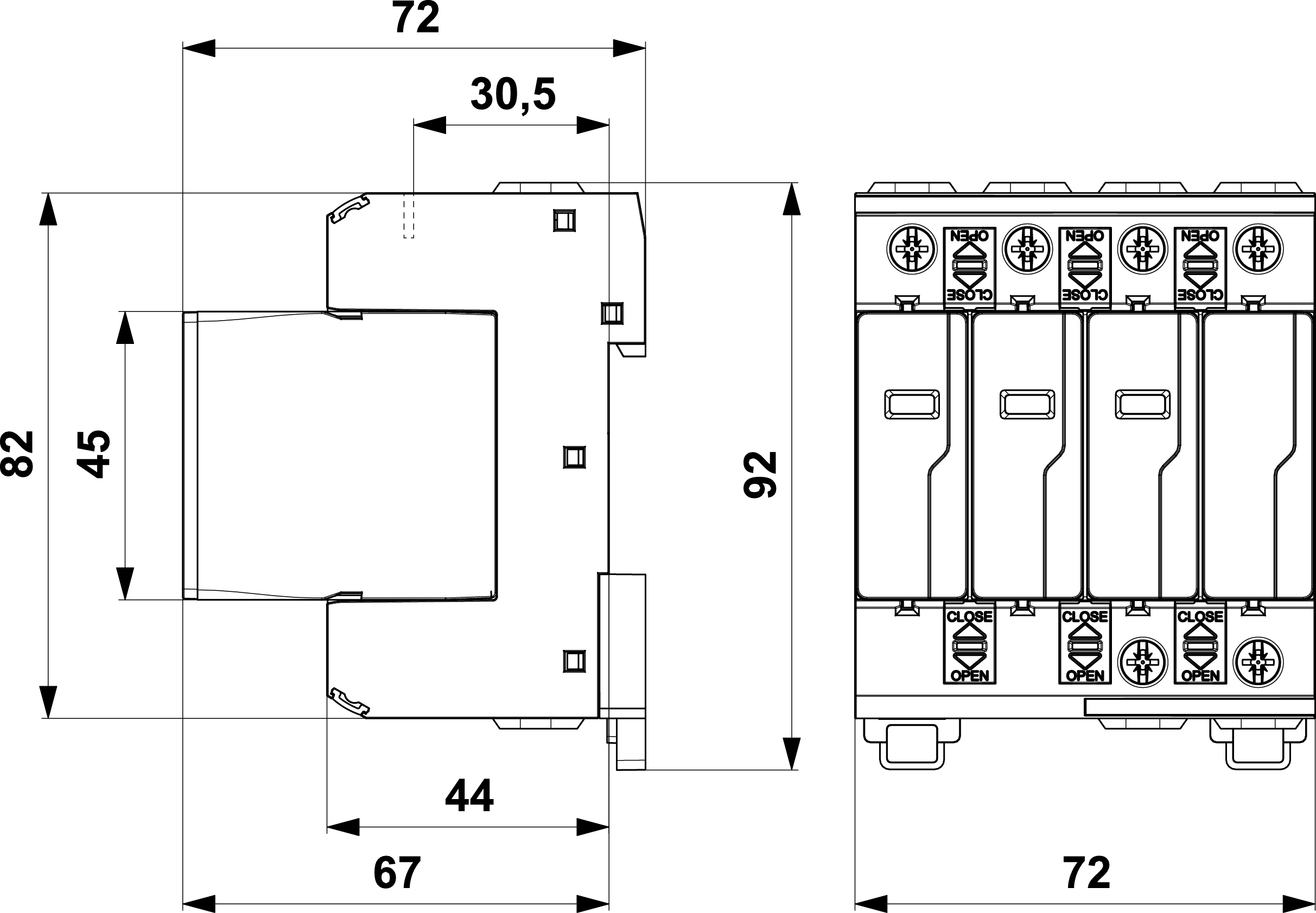

Product dimensions
-

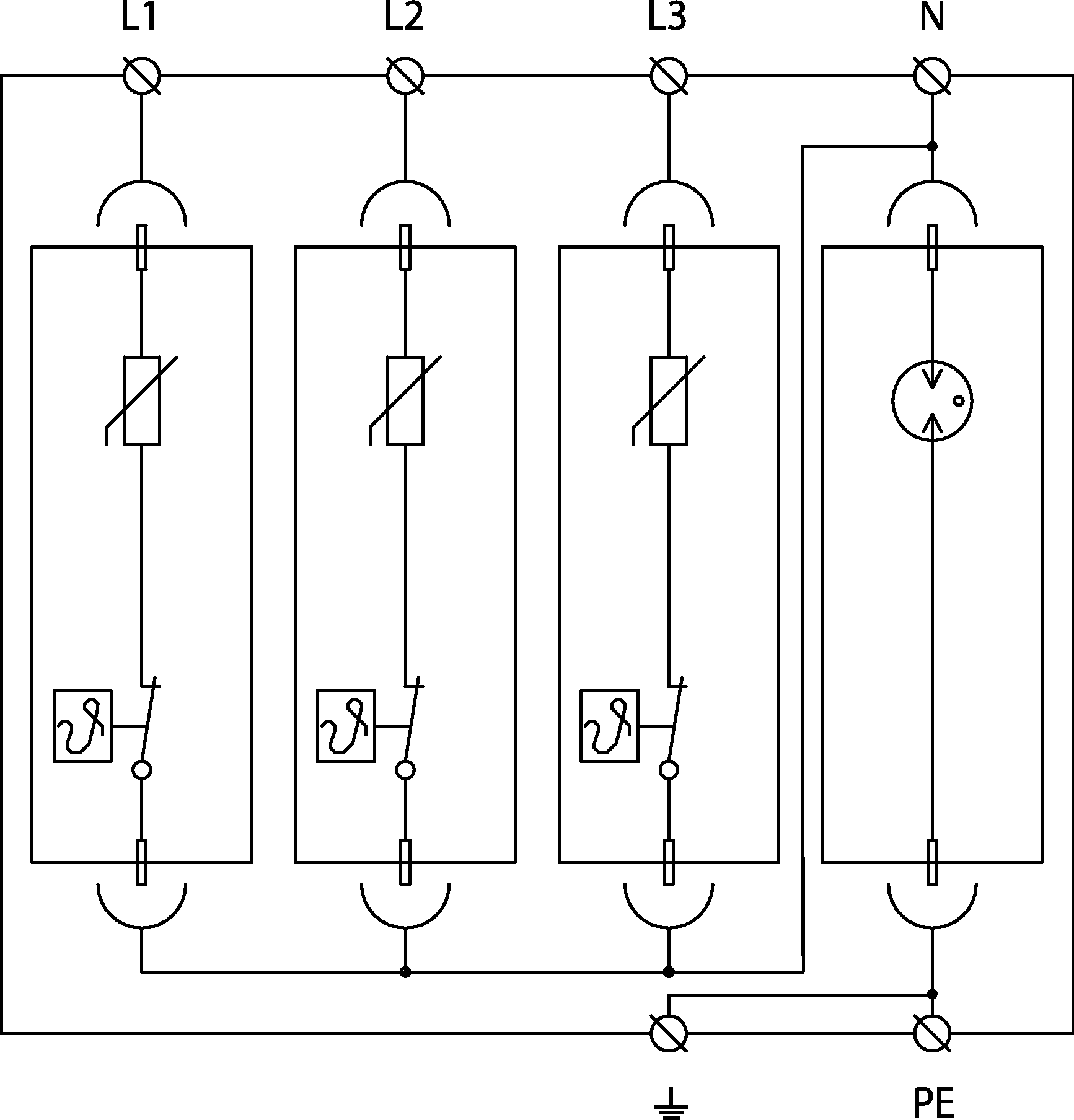

Basic circuit diagram
