Combination type
SLP-275-VB/1+1
Order number: A07057
pluggable module, visual fault signalling
- combined type surge arrester (serial combination varistor+GDT)
- installation to LV installations, especially to sub-distribution boards, suitable also for measuring circuits
- for protection of the installations and equipments against impact of induced overvoltages during a lightning strike in areas with higher storm activity or switching overvoltages or as the first stage of for protection for measuring circuits
- zero leakage current
Technical parameters
| Parameter name | Parameter value | |
|---|---|---|
| Type of SPD | T2 | |
| Mounting | DIN rail 35 mm | |
| Nominal voltage | Un | 230 V AC |
| Maximum operating voltage L-N | Uc | 275.00 V AC |
| Maximum operating voltage N-PE | Uc | 255.00 V AC |
| Type of network | TT|TN-S | |
| Maximum overcurrent protection | 125 A gL/gG | |
| Short-circuit current rating | ISCCR | 50.0 kA |
| Residual current | IPE | 0.002 mA |
| Nominal discharge current (8/20 µs) | In | 20.00 kA |
| Maximum discharge current (8/20 µs) | Imax | 40.00 kA |
| Voltage protection level mode L-N | Up | 1.50 kV |
| Voltage protection level mode L-PE | Up | 2.50 kV |
| Voltage protection level mode N-PE | Up | 1.50 kV |
| Ability to independently switch off the following current N-PE | Ifi | 0.1 kA |
| Response time | ta | 100 ns |
| TOV 5 s L-N | 335 V | |
| TOV characteristic (TOV 5 s) | withstand | |
| TOV 120 min L-N | 440 V | |
| TOV characteristic (120 min) | withstand | |
| TOV 200 ms L-PE | 1 455 V | |
| TOV 200 ms N-PE | 1 200 V | |
| TOV characteristic (TOV 200 ms) | withstand | |
| Cross-section of connected conductors solid (min) | 1.00 mm2 | |
| Cross-section of connected conductors solid (max) | 35.00 mm2 | |
| Cross-section of connected conductors stranded (min) | 1.00 mm2 | |
| Cross-section of connected conductors stranded (max) | 25.00 mm2 | |
| Fault indication L-N | red indication field | |
| Fault indication N-PE | no | |
| Remote indication | no | |
| Degree of protection | IP 20 | |
| Range of ambient temperatures (min/max) | -40 / 80 °C | |
| Humidity | 5 - 95 % | |
| According to standard | EN 61643-11:2012, IEC 61643-11:2011 | |
| ETIM Class | EC000941 | |
| Plug module | SLP-275-VB/0|SLP-NPE V/0 | |
| Customs tariff number | 85363030 | |
| EAN | 8595090570578 |
Files for download
-

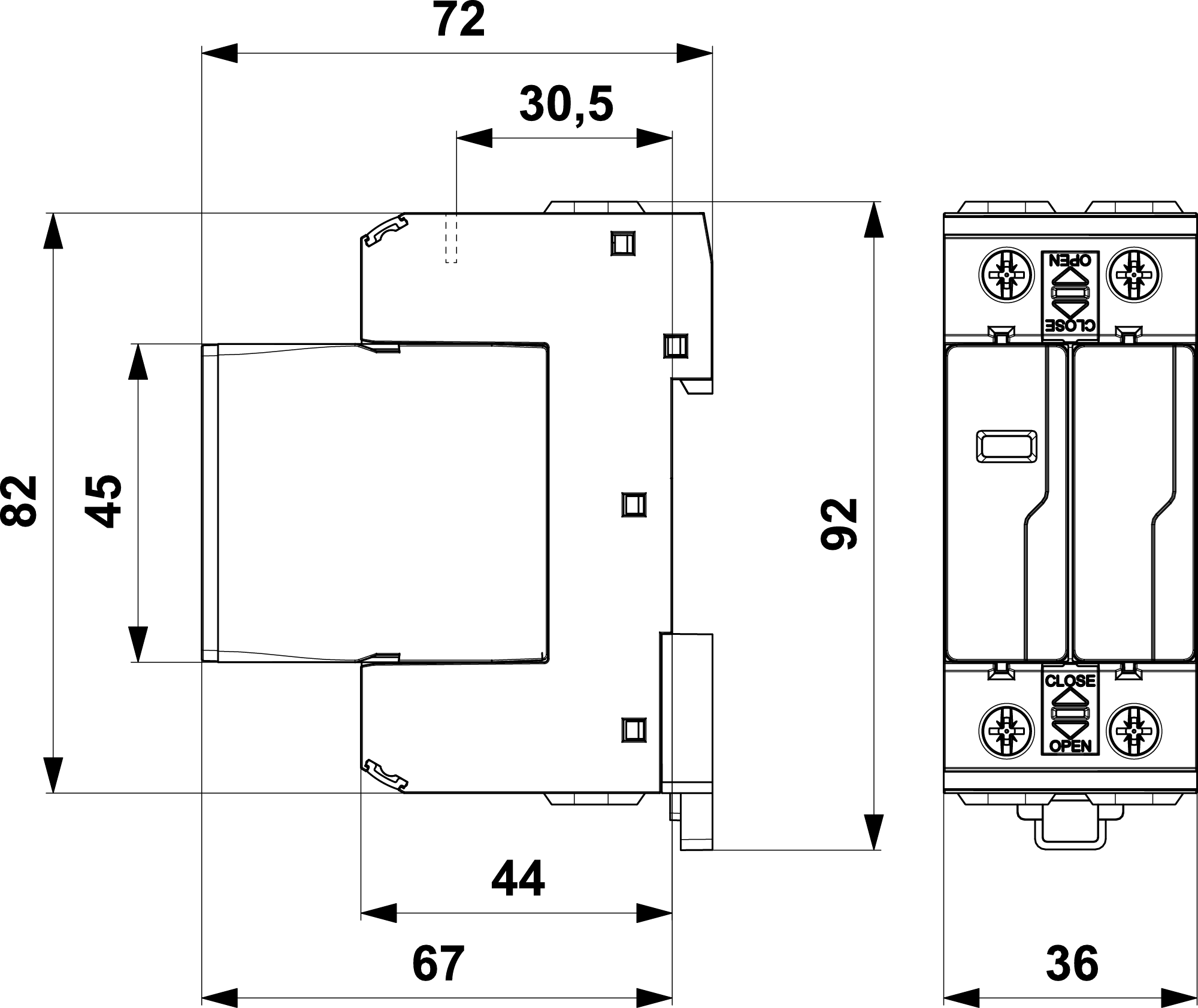

Product dimensions
-

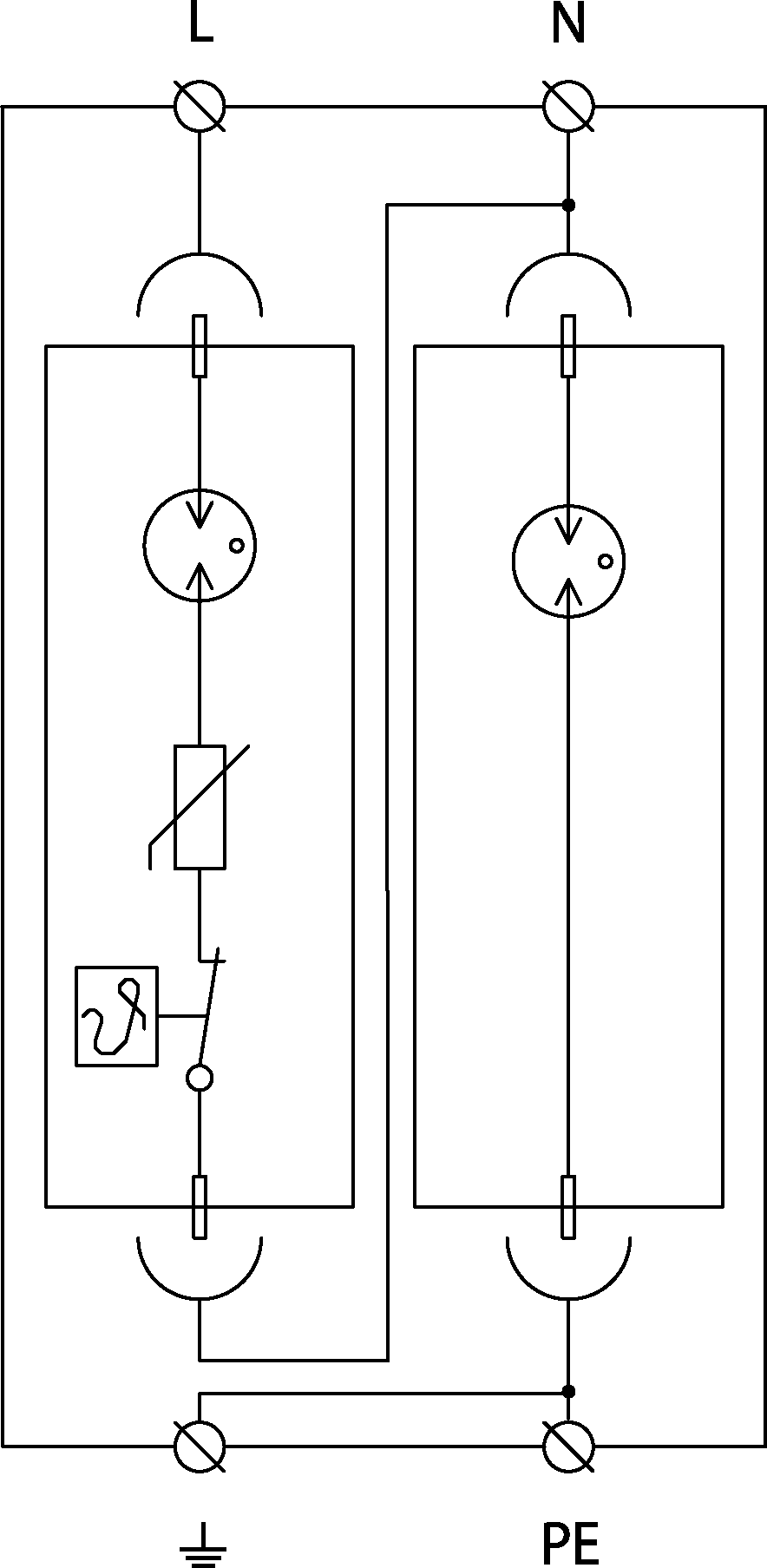

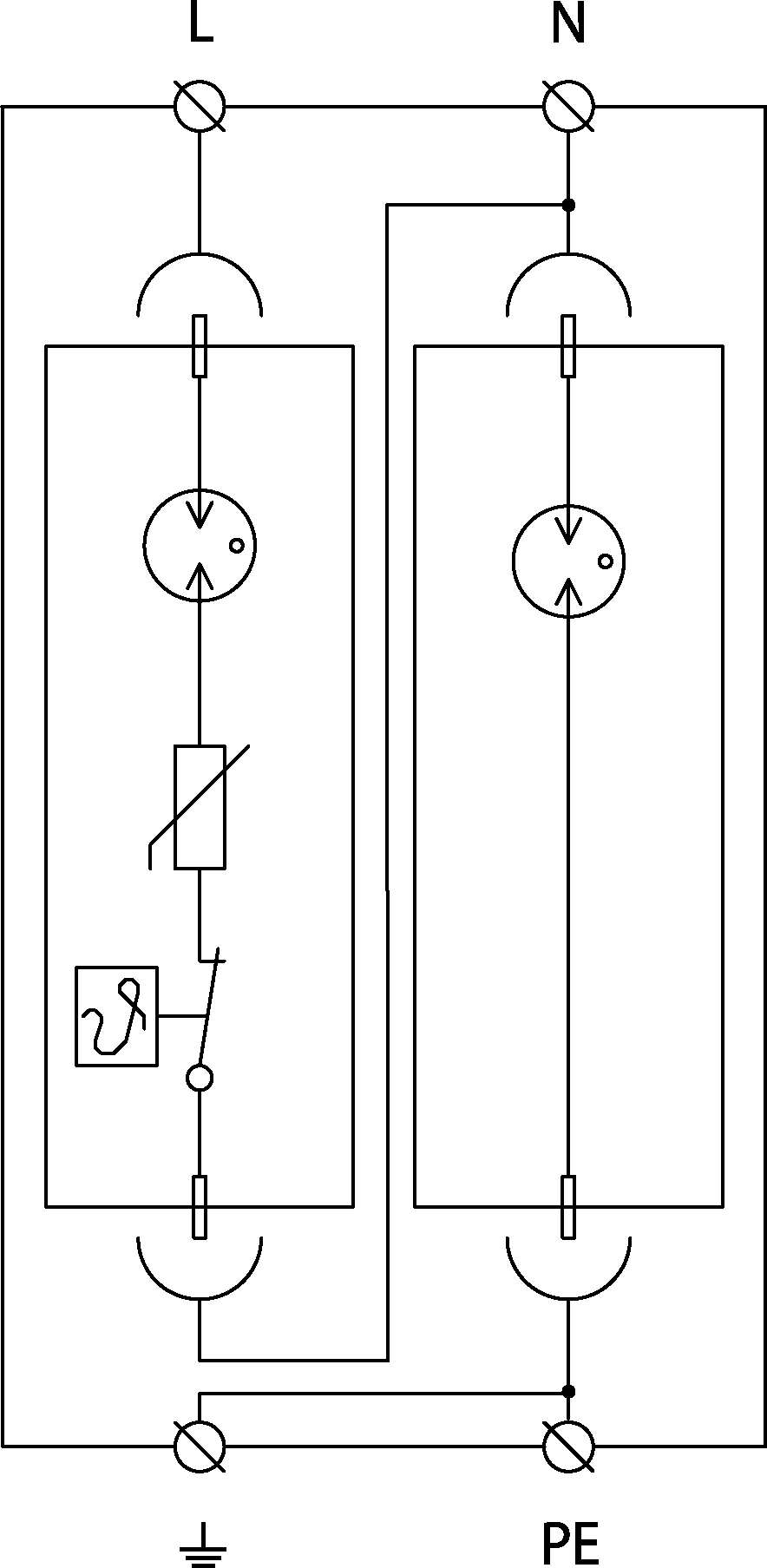

Basic circuit diagram
