SLP-PV170 V/U
Order number: A03662
pluggable module, visual fault signalling, module locking
- varistor surge arrester in 'U' connection
- for protection of PV systems where the separating spark-over distance is kept or without LPS
- maximum continuous operating voltage for PV application: UCPV ≥ 1.2x UOC STC
Technical parameters
| Parameter name | Parameter value | |
|---|---|---|
| Type of SPD | PV T2 | |
| Mounting | DIN rail 35 mm | |
| Maximum operating voltage mode +/PE, -/PE | UCPV | 170.00 V DC |
| Short-circuit current rating | ISCPV | 10 000 A DC |
| Residual current mode +/PE, -/PE | IPE | 0.280 mA AC |
| Residual current mode +/PE, -/PE | IPE | 0.005 mA DC |
| Total discharge current (8/20 µs) | ITotal(8/20) | 80.00 kA |
| Nominal discharge current (8/20 µs) | In | 15.00 kA |
| Maximum discharge current (8/20 µs) | Imax | 40.00 kA |
| Voltage protection level mode +/- | Up | 1.20 kV |
| Voltage protection level mode +/PE, -/PE | Up | 0.60 kV |
| Response time | ta | 25 ns |
| Cross-section of connected conductors solid (min) | 1.00 mm2 | |
| Cross-section of connected conductors solid (max) | 35.00 mm2 | |
| Cross-section of connected conductors stranded (min) | 1.00 mm2 | |
| Cross-section of connected conductors stranded (max) | 25.00 mm2 | |
| Fault indication | red indication field | |
| Degree of protection | IP 20 | |
| Range of ambient temperatures (min/max) | -40 / 80 °C | |
| According to standard | EN 61643-31, IEC 61643-31 | |
| ETIM Class | EC000941 | |
| Plug module | SLP-PV170U V/0 | |
| Customs tariff number | 85363030 | |
| EAN | 8595090536628 |
Files for download
-
Product dimensions
-

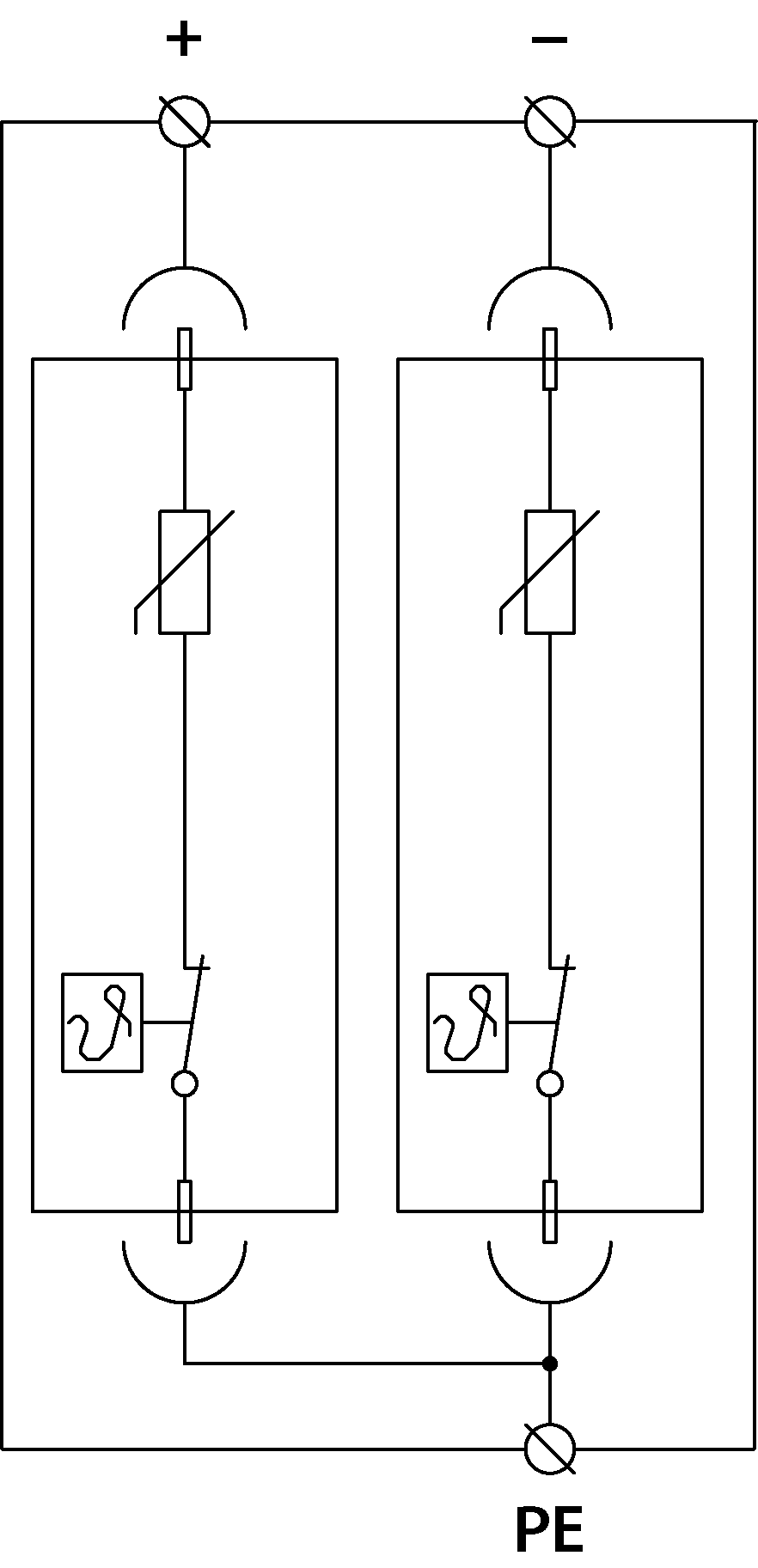

Basic circuit diagram
