MOV
FLP-12,5-075-VH/2
Order number: A04170
pluggable module, visual fault signalling
- two-pole varistor lightning current arrester
- installation at the boundary of zones LPZ 0 and LPZ 1 or higher
- for protection against impact of partial lightning currents, induced overvoltages during a lightning strike or switching overvoltages
Technical parameters
| Parameter name | Parameter value | |
|---|---|---|
| Type of SPD | T1,T2 | |
| Mounting | DIN rail 35 mm | |
| Nominal voltage | Un | 48÷60 V AC/DC |
| Maximum operating voltage | Uc | 75.00 V AC |
| Maximum operating voltage | Uc | 75.00 V DC |
| Type of network | TN | |
| Maximum overcurrent protection | 160 A gL/gG | |
| Short-circuit current rating | ISCCR | 25.0 kA |
| Lightning impulse current (10/350 µs) | Iimp | 12.50 kA |
| Nominal discharge current (8/20 µs) | In | 20.00 kA |
| Maximum discharge current (8/20 µs) | Imax | 40.00 kA |
| Voltage protection level | Up | 0.45 kV |
| Response time | ta | 25 ns |
| Cross-section of connected conductors solid (min) | 1.00 mm2 | |
| Cross-section of connected conductors solid (max) | 35.00 mm2 | |
| Cross-section of connected conductors stranded (min) | 1.00 mm2 | |
| Cross-section of connected conductors stranded (max) | 25.00 mm2 | |
| Fault indication | red indication field | |
| Degree of protection | IP 20 | |
| Range of ambient temperatures (min/max) | -40 / 80 °C | |
| Humidity | 5 - 95 % | |
| According to standard | EN 61643-11:2012, IEC 61643-11:2011 | |
| ETIM Class | EC000381 | |
| Plug module | FLP-12,5-075-VH/0 | |
| Customs tariff number | 85363030 | |
| EAN | 8595090541707 |
Files for download
-

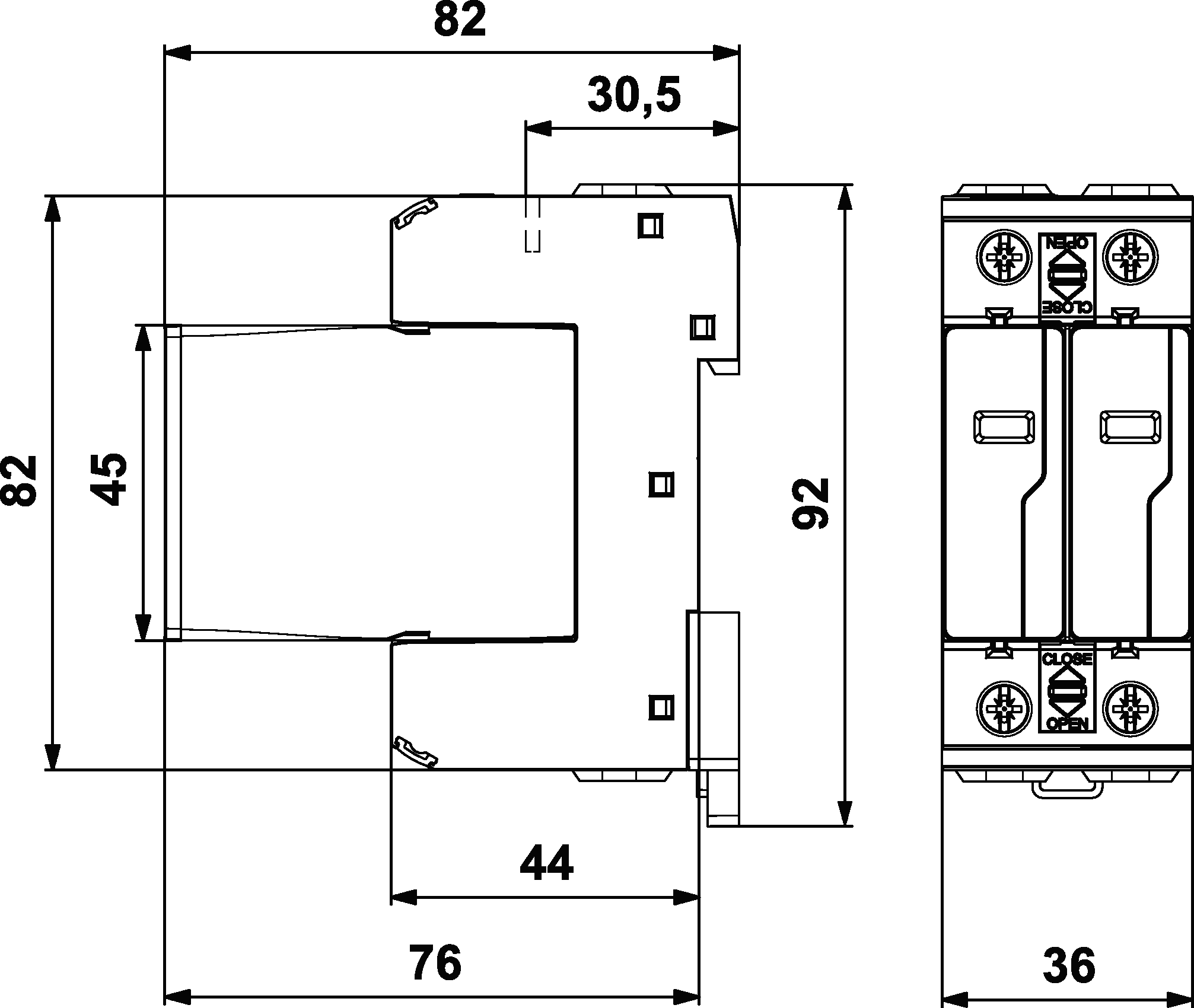

Product dimensions
-
Basic circuit diagram
