ST2 (SX)
SX-090-B50-F/F
Order number: A04157
BNC connectors 50 ohm
- surge arrester, shielding connected to protective grounding
- installation close to protected equipment
- for protection of sensitive coaxial inputs of professional receivers
Technical parameters
| Parameter name | Parameter value | |
|---|---|---|
| Type of SPD | D1,C2,C3 | |
| Location of SPD | ST 1+2+3 | |
| Mounting | DIN rail 35 mm | |
| Maximum operating voltage | Uc | 26.00 V DC |
| Nominal load current | IL | 0.700 A |
| Frequency range | f | 0,00 - 3000,00 MHz |
| Impedance | Z | 50 Ω |
| Insertion loss | 1.50 dB | |
| VSWR typ. (max.) | VSWR | 1,2 (1,3) |
| D1 impulse discharge current (10/350 µs) core-PE | Iimp | 0.50 kA |
| C2 nominal discharge current (8/20 µs) core-PE | In | 2.50 kA |
| Dynamic spark-over voltage at 1kV/µs | Udyn | 85.00 V |
| Response time core-PE | ta | 1 ns |
| Connection (input - output) | BNC 50 | |
| Degree of protection | IP 20 | |
| Range of ambient temperatures (min/max) | -40 / 80 °C | |
| Humidity | 5 - 95 % | |
| According to standard | EN 61643-21+A1,A2:2013, IEC 61643-21+A1,A2:2012 | |
| ETIM Class | EC001625 | |
| Customs tariff number | 85363010 | |
| EAN | 8595090541578 |
Files for download
-

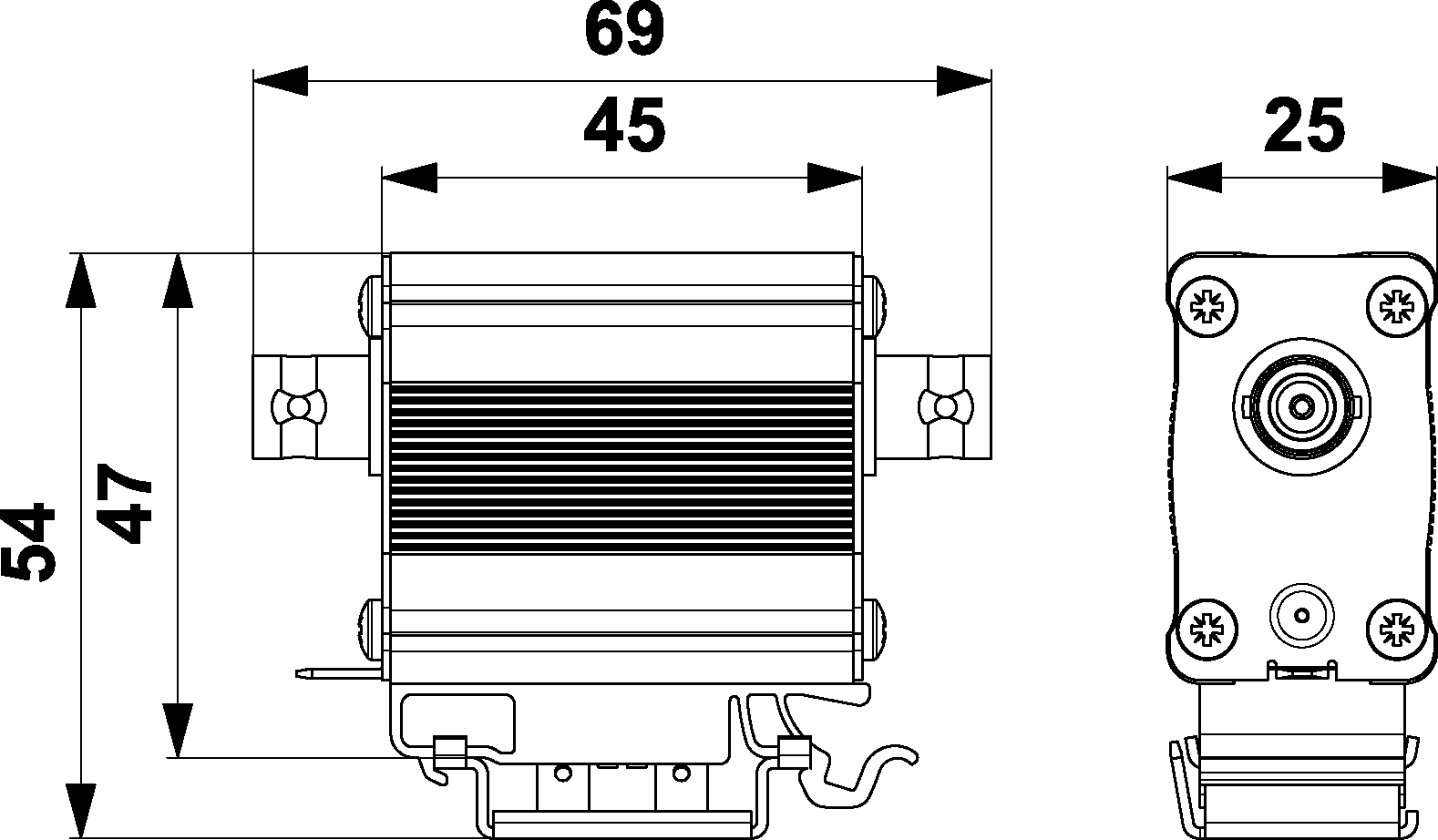

Product dimensions
-
