SPD
SP-T2+T3-320/Y-TLT-LED
Order number: A06244
input/output terminals, PE lug, fault signalling by supply interruption§ 1 surge arrester especially for LED lights§ installation close to protected equipment in LV power circuits§ also for equipment in external part of building with high exposure level (according to IEEE C62.41.2)
Technical parameters
| Parameter name | Parameter value | |
|---|---|---|
| Type of SPD | T2,T3 | |
| Nominal voltage | Un | 230 V AC |
| Maximum operating voltage | Uc | 320.00 V AC |
| Nominal load current | IL | 10.000 A |
| Type of network | TT|TN | |
| Maximum overcurrent protection | 32 A gL/gG or C 32 A | |
| Short-circuit current rating | ISCCR | 3.0 kA |
| Residual current | IPE | 0.004 mA |
| Nominal discharge current (8/20 µs) L-N | In | 5.00 kA |
| Nominal discharge current (8/20 µs) N-PE | In | 5.00 kA |
| Maximum discharge current (8/20 µs) L-N | Imax | 10.00 kA |
| Maximum discharge current (8/20 µs) N-PE | Imax | 10.00 kA |
| Test voltage L-N | Uoc | 10.0 kV |
| Test voltage L-PE | Uoc | 10.0 kV |
| Test voltage N-PE | Uoc | 10.0 kV |
| Voltage protection level mode L-N | Up | 1.30 kV |
| Voltage protection level mode L-PE | Up | 1.50 kV |
| Voltage protection level mode N-PE | Up | 1.50 kV |
| Response time L-N | ta | 25 ns |
| Response time N-PE | ta | 100 ns |
| TOV 5 s L-N | 335 V | |
| TOV 5 s L-PE | 440 V | |
| TOV characteristic (TOV 5 s) | withstand | |
| TOV 120 min L-N | 440 V | |
| TOV characteristic (120 min) | withstand | |
| TOV 200 ms L-PE | 1 455 V | |
| TOV 200 ms N-PE | 1 200 V | |
| TOV characteristic (TOV 200 ms) | safe failure | |
| Cross-section of connected conductors solid (max) | 2.50 mm2 | |
| Cross-section of connected conductors stranded (max) | 1.50 mm2 | |
| Fault indication | loss of voltage, dark grey indication field | |
| Degree of protection | IP 20 | |
| Range of ambient temperatures (min/max) | -40 / 80 °C | |
| Humidity | 5 - 95 % | |
| According to standard | EN 61643-11:2012, IEC 61643-11:2011 | |
| ETIM Class | EC000942 | |
| Customs tariff number | 85363030 | |
| EAN | 8595090562443 |
Files for download
-

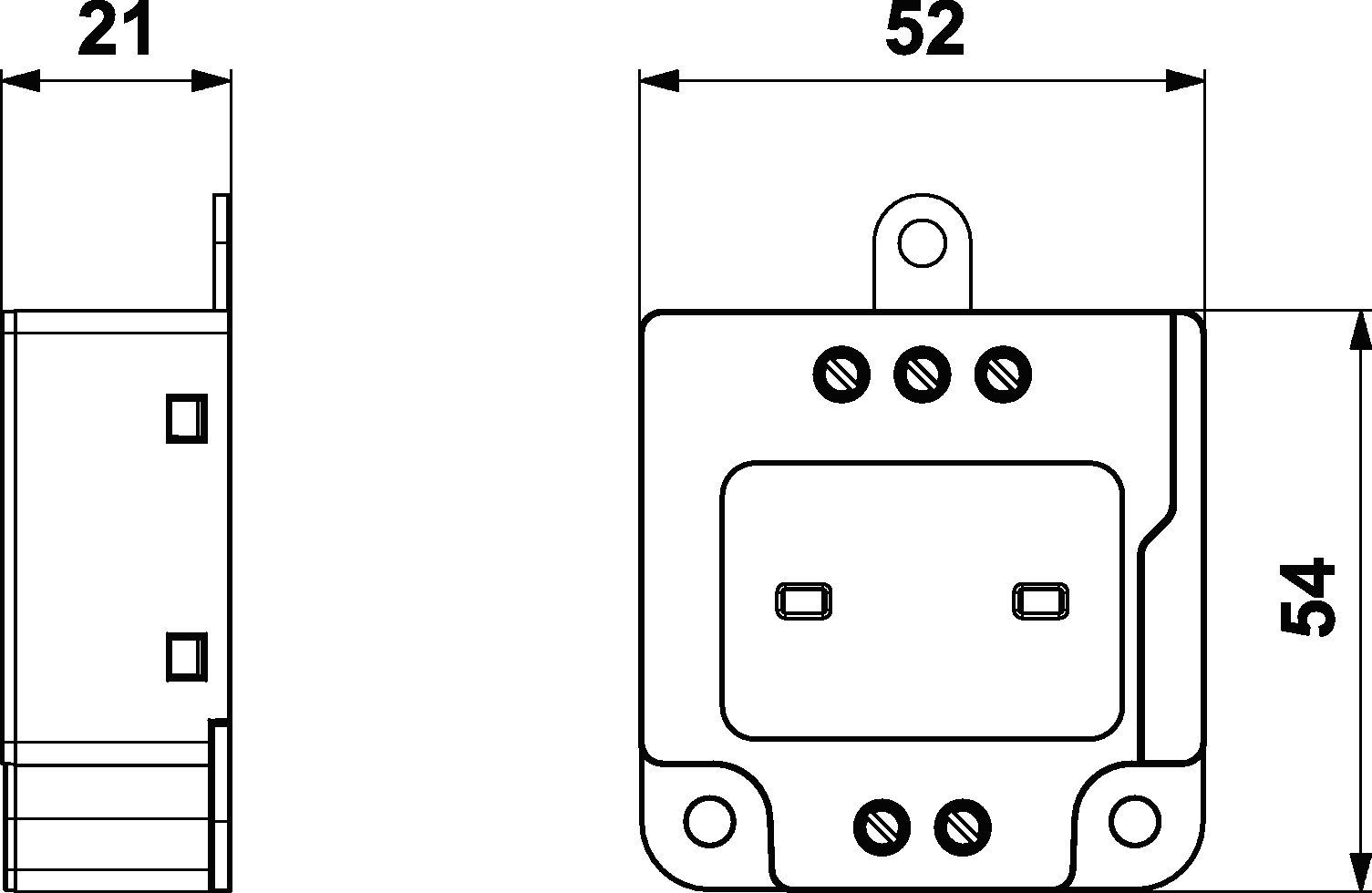

Product dimensions
-
Basic circuit diagram
